Product parameters
Prouduct Details

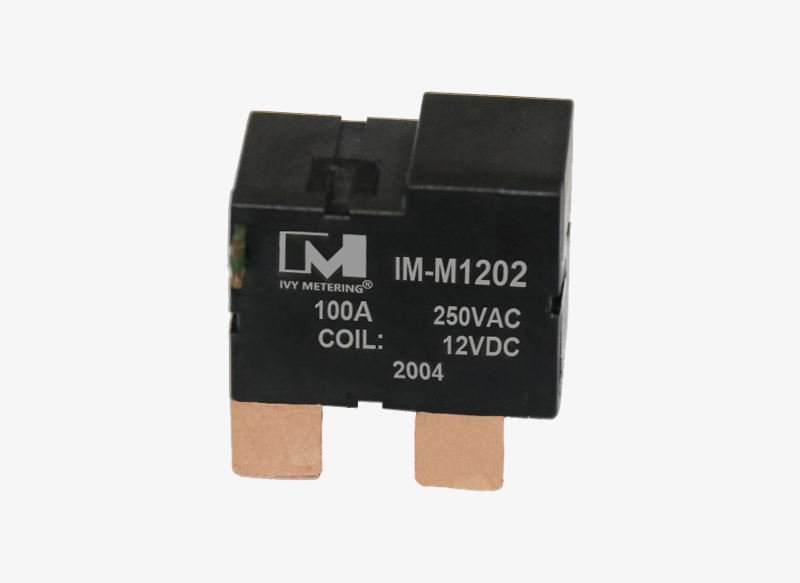

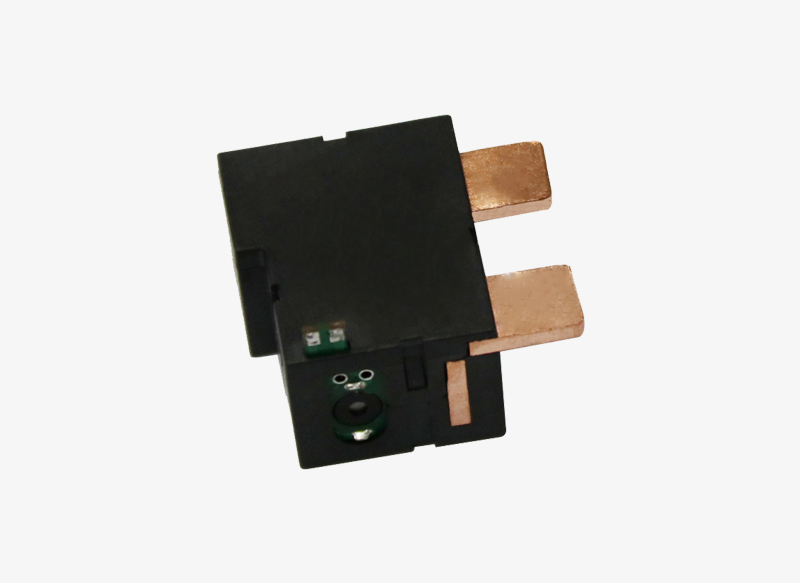

IM-M1202 is 100A high power motor latching relay, As a electromagnetic power relay, it has stable performance and long service life. The small motor switch has following characterristics: Cost Efficiency & Surge Protection; Single Coil Double Coil Optional; External Shielding Case Available; RoHS Compliant Materials and Process; Custom Assemblies with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals. As a miniature type magnetic relay, it also pass IEC62055-31 UC3 Certified. This safety magnetic switch is also widely used in Energy Meter, RCCB, EV charger, IOT Device, smart lighting control etc.
Product Feature
Contact Form:1A/B
Max.Switching Current:100A
Permanent Magnetic Immunity to 500mT
Power Consumption:3W(80ms)
Compact Design of Dimension:29*23.5*16mm
IEC62055-31 UC3 Certified with Appearance Patent
Our latching series relay are specifically made to cater for the requirements of smart meters, typical features include:
Compact in size
Low cost and very competitive price
Pulse coil driven with negligible energy consumption
Choices of single and dual coils
Very low temperature rise and minimal coil heat
Magnetic immunity and anti-tempering
Long mechanical and electrical life
Single phase models and polyphase models (with double-pole and three-pole relays available)
Wide range of contact current ratings (60A to 200A)
Meeting various international standards (e.g. UC3 )
Customised assemblies with stranded wires, brass terminals, CTs, shunts and even meter cases
Product Parameter
Dimensions（mm） | 29×23.5×16 | |
Weight ( g ) | ≈40g | |
Contact Arrangement | 1A/1B | |
Contact Material | AgSnO2 | |
Ambient Temperature | -40~+75℃ | |
Vibration | 10~50Hz,1.5mm | |
Shock | 1000m/s²,(100g) | |
Power Consumption | ＜3W | |
Operating Voltage | 10.5-16V | |
Max. Switching Current | 100A | |
Surge Current | 6000A/10ms | |
Motor Resistance | 32(1±15%)Ω | |
Contact Voltage | ＜60mV | |
Contact Resistance | ≤1.0mΩ | |
Dielectric Strength | Motor to Contact | ＞4000VAC,50/60Hz 1min |
Across Open Contact | ＞2000VAC,50/60Hz 1min | |
Electrical Life(120 cycles/H) | 10,000 (resistance 5 k + perceptual 5 k, co ϕ = 0.5) | |
Mechanical Life(3600 cycles/H) | 100,000 | |
Pulse Time | ≥60ms(Advise 60ms~100ms) | |
Picking-up Time | ≤60ms | |
Release Time | ≤60ms | |
