IM901T 90A 250VAC Coil 12VDC High Power Electromagnetic 3 Phase Cable Latching Relay with CT/Shunt

IVY Latching Relay

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

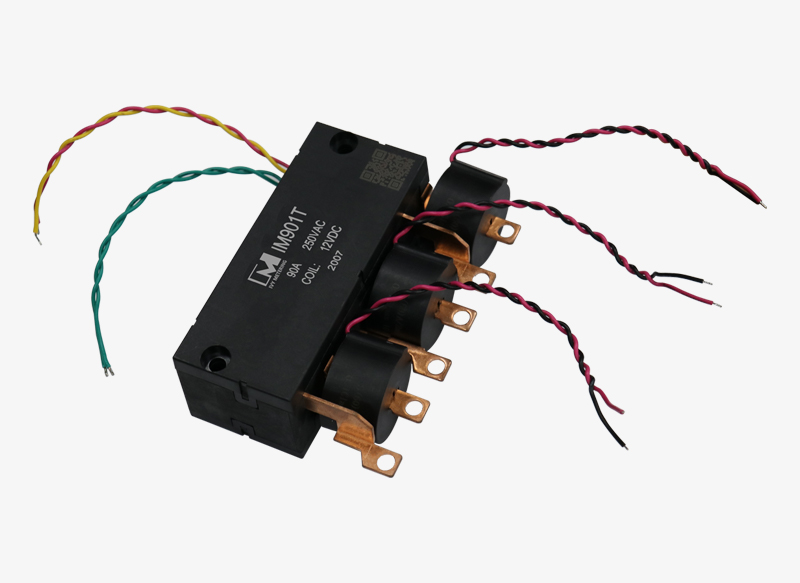

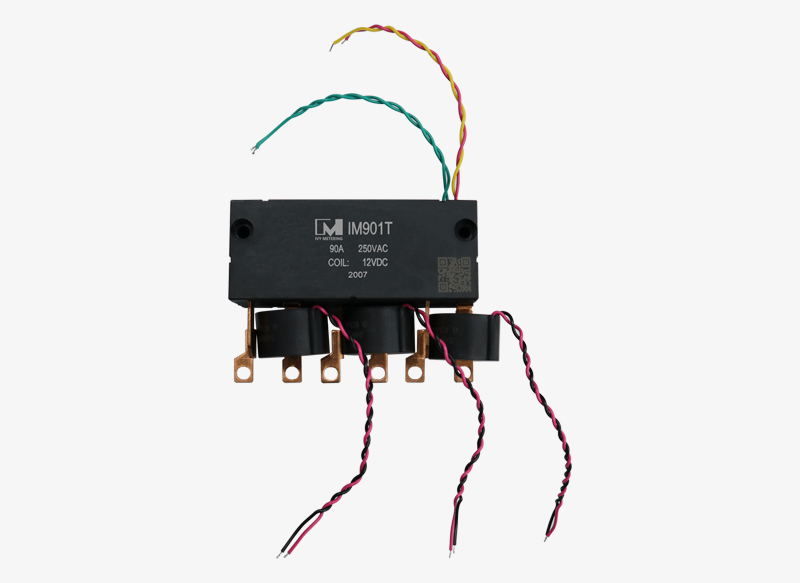

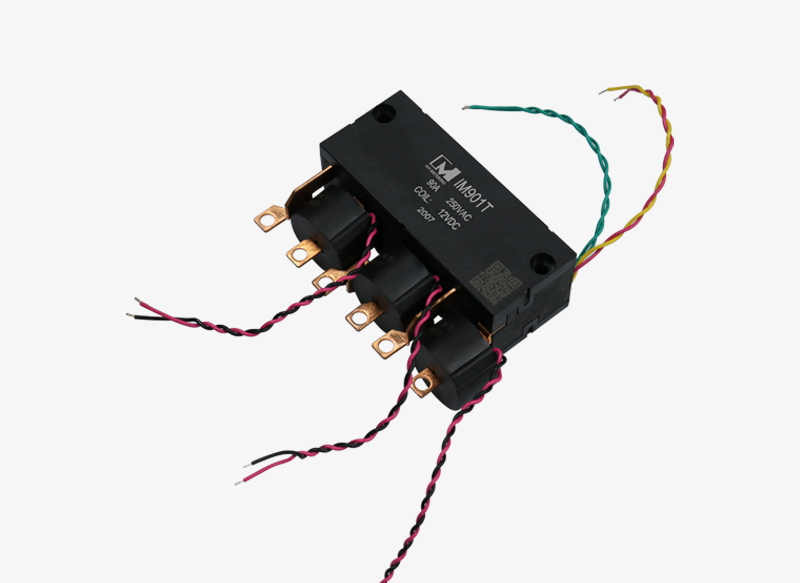

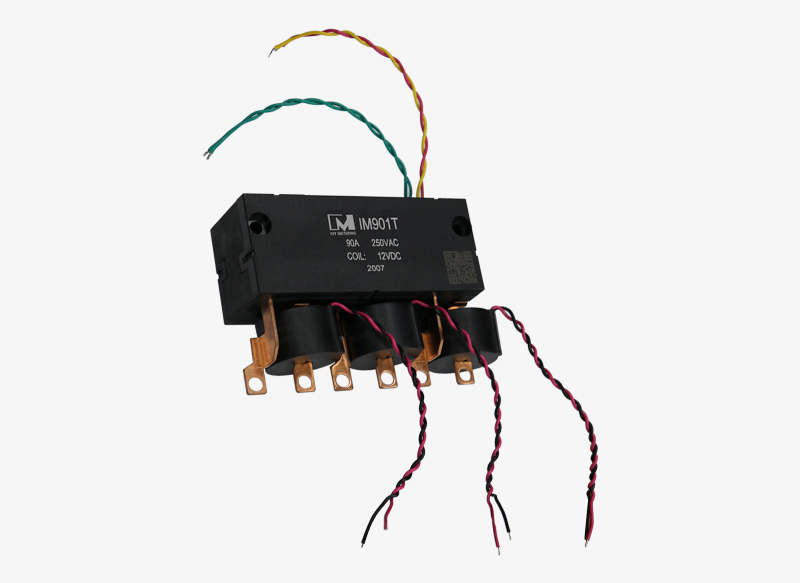

IM901T is a small industrial bistable latching power relay with continuous current up to 90A, and switching 90A 250VAC. Single and Double coil latching. Used in utility meters and for solar, EV charger and energy conservation.

IM901T 90A Three Phase Latching Relay

3 Phase Relay (3A/3B); 90A 250VAC Switching Capacity

Single/Dual Coil Optional; Coil Voltage:6~48VDC

with Auxiliary Contact and Customized CT/Shunt/Terminal

IEC/CE/UC3/ROHS Compliant; Designed for 3 Phase Meter

Integrated Design and Cost Efficiency

Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.

4) New Energy Field: EV charger, PV Inverter

Product Parameters
