IM-NE802 is a UL/TUV certified 63A/80A/100A spst power relay for EV AC Charger. It's main features as follow:

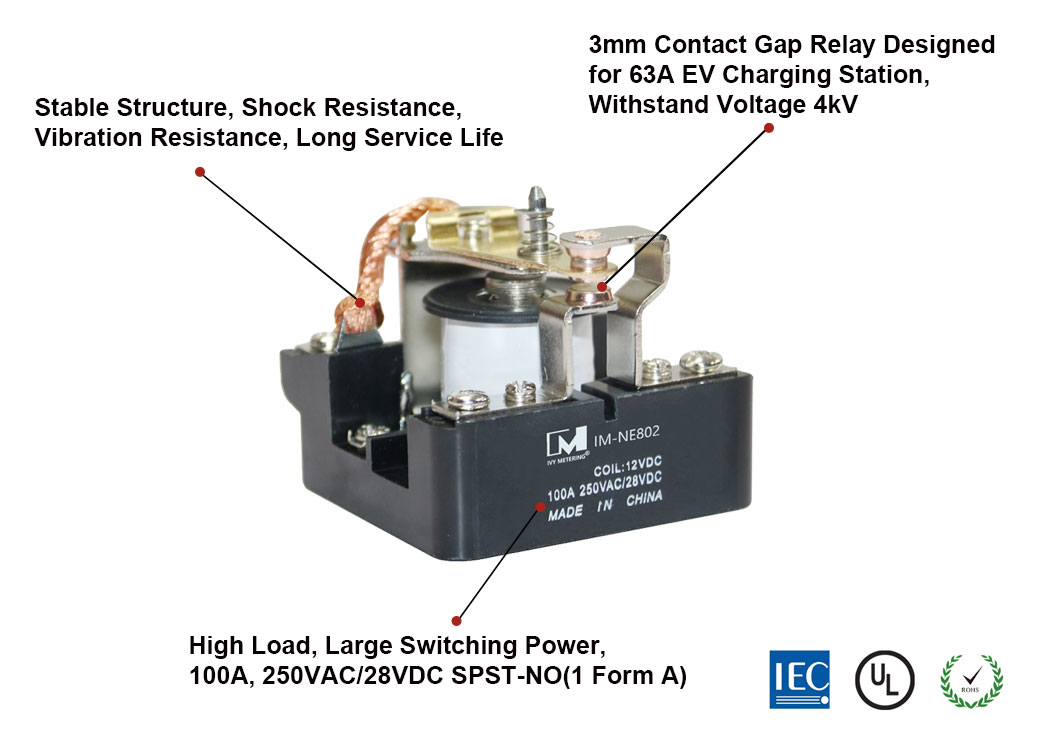

Switching Capacity: 100A, 250VAC/28VDC; Contact Form:1A; High Dielectric Strength 4000VAC; Stable Structure, Shock Resistance, Vibration Resistance, Long Service Life; UL Certified, IEC Standard.
Compared with other power relays on the market, the main advantages of lie in 3mm conntact gap:
Its contact distance can be up to 3mm, and the contact spacing of the general relay is about 0.8mm or 1.5mm. In some ways this feature made contact between medium pressure can improve a lot, the higher the withstand voltage value, and also solve the problem of contact resistance increase rapidly, etc, under non-operation status it can avoid wrong operation or damage caused by external factors. which improves the tensile arc resistance of the contact and prolongs the service life of the relay.
Technical Parameters:
Contact Arrangement | 1A | |
Contact Material | Silver Alloy | |
Contact Resistance | Max.50mΩ | |
Rated Load | 100A 250VAC | |
100A 28VDC | ||
Max. Switching Voltage | 28VDC/250VAC | |
Max. Switching Current | 100A | |
Max. Switching Power | 2800W/25000VA | |
Electrical Life | 2×104 | |
Mechanical Life | 1×107 | |
Coil power consumption | （DC） | 2.2W |
（AC） | 10VA | |
Coil Voltage | （DC） | 6～220VDC |
（AC） | 6～220VAC | |
Product Application
Widely used in 63A EV charging station, industrial control, smart home etc.
Order Notice
IM-NE802 - 1 A - 12VDC-XXΩ
① ②③ ④ ⑤
①Type | ②Pole | ③Contact Type | ④Coil Voltage | ⑤Coil Resistance |
IM-NE802 | 1:1Pole | A: Normally Open | 6~220VDC 6~220VAC | As described in “Coil Parameters” |
