IVY is specialized in the research, development, and manufacturing of high powered, high quality, highly reliable latching relays. We offer latching relays from 32A to 200A for both single, dual and three phase switching purposes. Our relays are designed to meet the industry's highest performance standard and it offers the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.

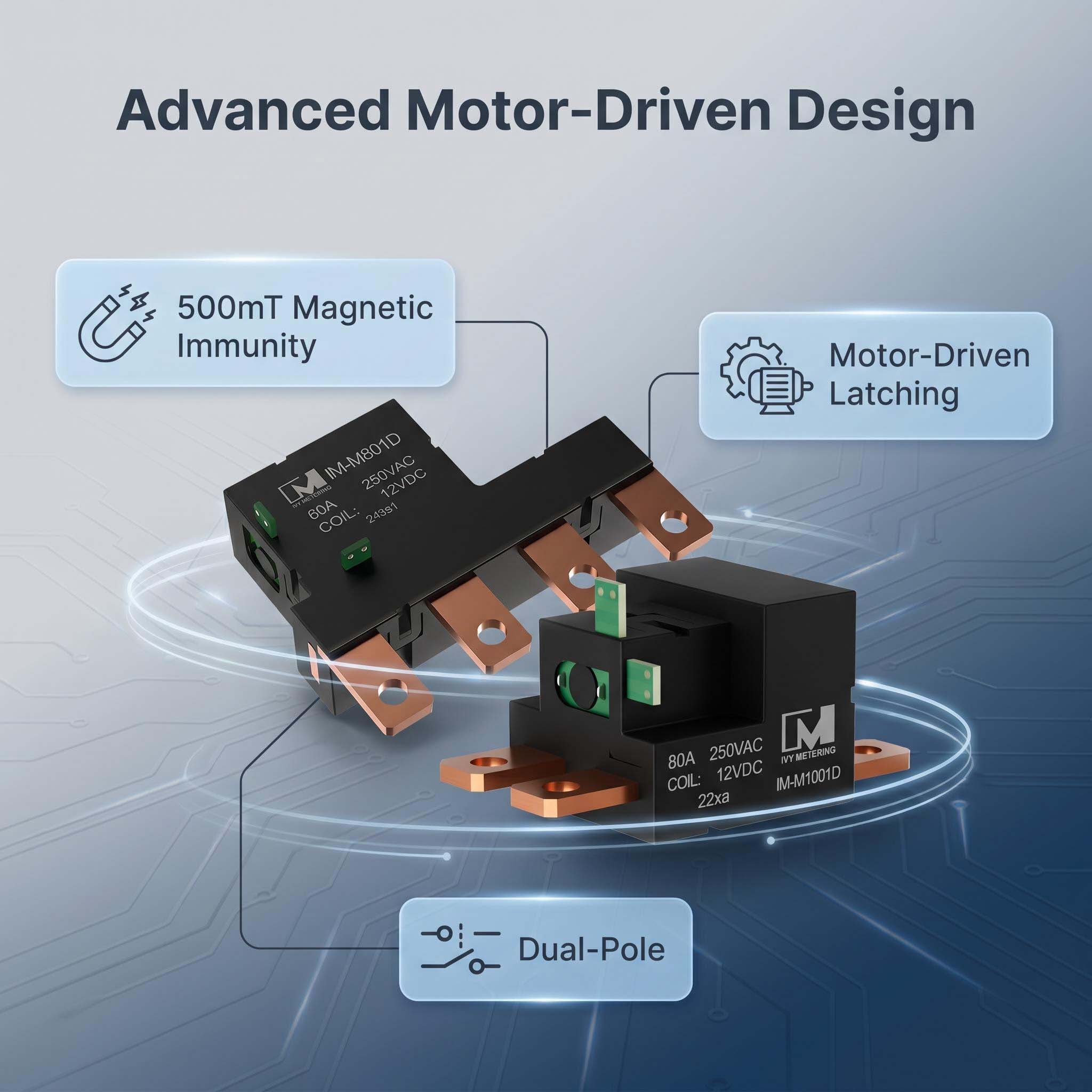

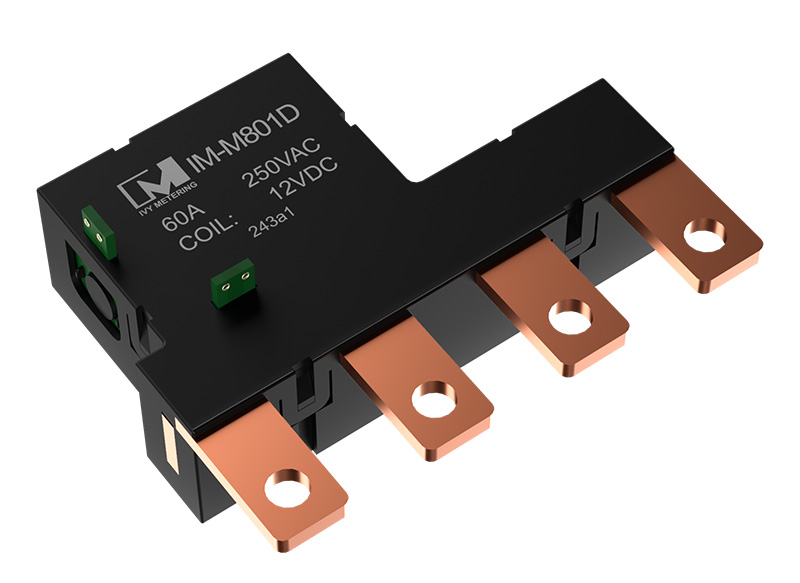

IVY Metering IM-M801D 60A 2 phase relay are newly launched! Compared with other latching relays, it is smaller in size, has lower contact resistance, and permanent magentic immune up to 400mT/500mT.
Product Advantages
60A two sets of contacts switching capability
Small size, Compact structure
Resistance to external static magnetic field up to 400mT/500mT
Strong anti-shock ability and low contact resistance
Auxiliary switch optional
In accordance with IEC 62052-11/IEC 62053-21 UC3
Personalized customization, drive end: PCB type/PCB lead type/internal motor lead type
Load end: Assemblies available with flexible wire, copper straps, and with CT or integrated shunt
Product Parameters
Basic Parameter | dimension | 57*32.8*16mm | |
weight | ≈34g | ||
ambient temperature | -40~+85℃ | ||
Contact Parameter | Contact material | AgSnO2 | |
Contact form | 2A/2B | ||
contact resistance | ≤0.6mΩ（DC6~24V，1A） | ||
Maximum switching current | 60A | ||
Maximum switching voltage | 250VAC | ||
Performance parameters | Rated voltage | 12VDC | |
Motor resistance（R±15%） | 32Ω | ||
Motor power consumption | 4.5W | ||
vibration | 1.5mm(double amplitude),10~55Hz | ||
Anti-shock resistance | 1000m/s² (100G) | ||
Insulation resistance | ＞1000MΩ（500VDC） | ||
dielectric strength | motor to contacts | 4000VAC,50/60Hz，1min | |
across open contacts | 2000VAC,50/60Hz，1min | ||
Short circuit current withstand capability | 6000A（50/60Hz）, ≈10ms | ||
pulse time | 50ms~80ms（Advise） | ||
pull-in time | ≤45ms | ||
release time | ≤45ms | ||
Electrical life | 10000cylcle（resistive load 60A 230VAC） | ||
Mechanical life | 100000cylcle | ||
TYPICAL APPLICATION：
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
