AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 bistable relay. Both types are availabe with a mirror contact according to IEC 60947-1 and VDE / TUV/UL approvals. They can be used in the latest generation of wallboxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm.

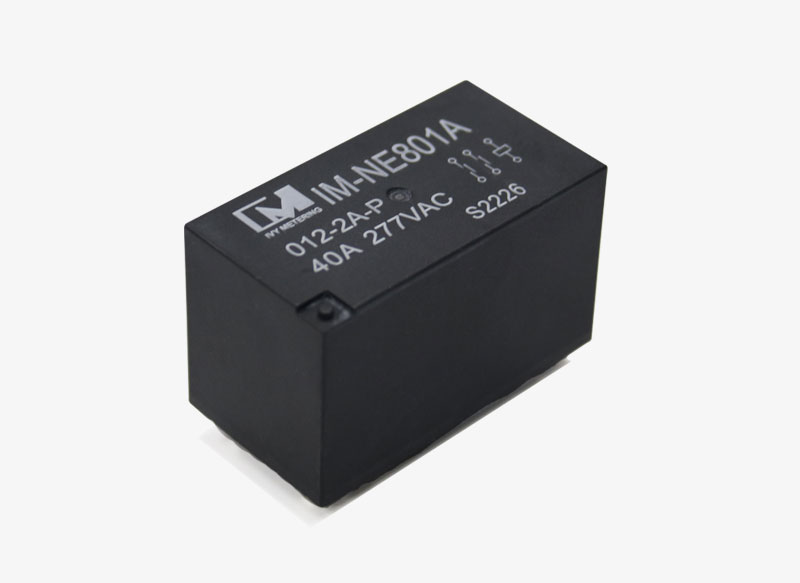

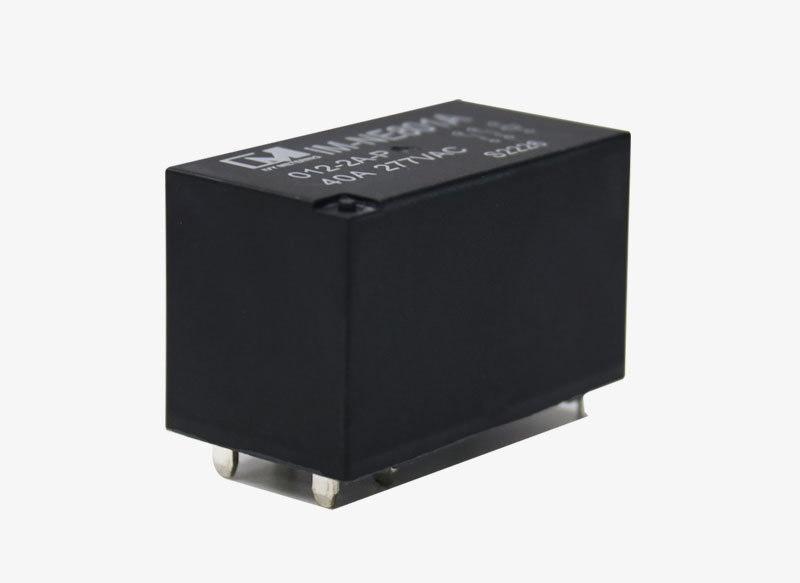

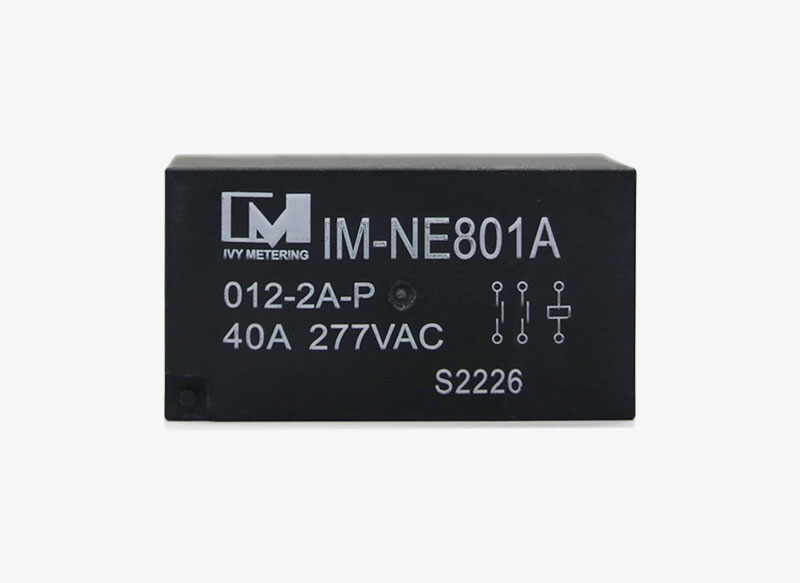

IM-NE801A is a 32A 40A Two-pole PCB power relay. Low Temperature Rise; Sealed Structure to Resist Harsh Environment; Comply with UL/TUV Certified, IEC61810-1 Standard.
Strong overcurrent carrying capacity. The relay can withstand 3 times of 1000A 1ms overcurrent, and the contacts will not be damaged, and can continue to work normally to open and close.
Its contact distance can be up to 3mm, and the contact spacing of the general relay is about 0.8mm or 1.5mm. In some ways this feature made contact between medium pressure can improve a lot, the higher the withstand voltage value, and also solve the problem of contact resistance increase rapidly, etc, under non-operation status it can avoid wrong operation or damage caused by external factors. which improves the tensile arc resistance of the contact and prolongs the service life of the relay.
It's main features as follow:
- Mounting type: PCB mounted through hole
- Contact arrangement: 2 form A (NO)
- Rated coil voltage: 12VDC/24VDC
- Maxmum contact voltage: 277VAC
- Contact gap: 3mm (@4kV overvoltage)
- Number of operations: 50 000 cycles @32A, 230-250V
- Contact resistance/load category: CC2
2.Technical Parameters:
| Dimension(mm) | 49×30×26.5 | |
| Weight ( g ) | ≈70g | |
| Contact Arrangement | 2A/2B | |
| Contact Material | AgSnO2 | |
| Environment Temperature | Operation:-40℃~85℃ ; Storage:-40℃~125℃ | |
| Continuous Current | 40A | |
| Max. Switching Voltage | 277VAC | |
| Initial Contact Resistance | 10mΩ (at 20A) | |
| Insulation Resistance | 100MΩ, at 500VDC, 50%RH | |
| Mechanical Endurance | 1×10^6 ops | |
| Electrical Endurance | 5×10^5 ops | |
| Power Consumption | 1.8W/3.0W | |
| Rated Voltage | 12VDC/24VDC | |
| Pick-up Time | 30ms. typical | |
| Release Time | 10ms. typical | |
| Dielectric withstanding voltage | Across Open Contact | 801:3000VAC 1min ；801A: 4000VAC 1min |
| Coil to Contact | 4000VAC 1min | |
| Shock Resistance | 20g, 11ms | |
| Dielectric Strength | 500Vrms, 1 min | |
3. Product Application
AC wallbox/AC charging station
Solar Photovoltaic Inverters
Energy Storage System
