IM901D: Ultra-Reliable, Small Latching Relay - Powerful 2-Pole Control!

Today’s suppliers of latching relays have to adapt to the requirements emerging from the metering industry. The main driving forces are cost, size, performance, and reliability of the metering equipment. For the electronics, the pressure is on a higher degree of integration with less power consumption and smaller board space.

Smart meters are used for the measurement of electricity for the fast development of smart grid. Latching relays can be controlled by simply applying the trigger pulses. The closed position of the relays can be switched using magnetism.  The important function of latching relays is low power consumption, so it is proved to be the important component of the smart meter. The performance and quality of the Smart meter depends on latching relays. The problem in quality of the latching relays can cause the fire or the explosion of the smart meters. The regulatory commission is coming up with many rules and technical specification for the improvement in quality of the product.

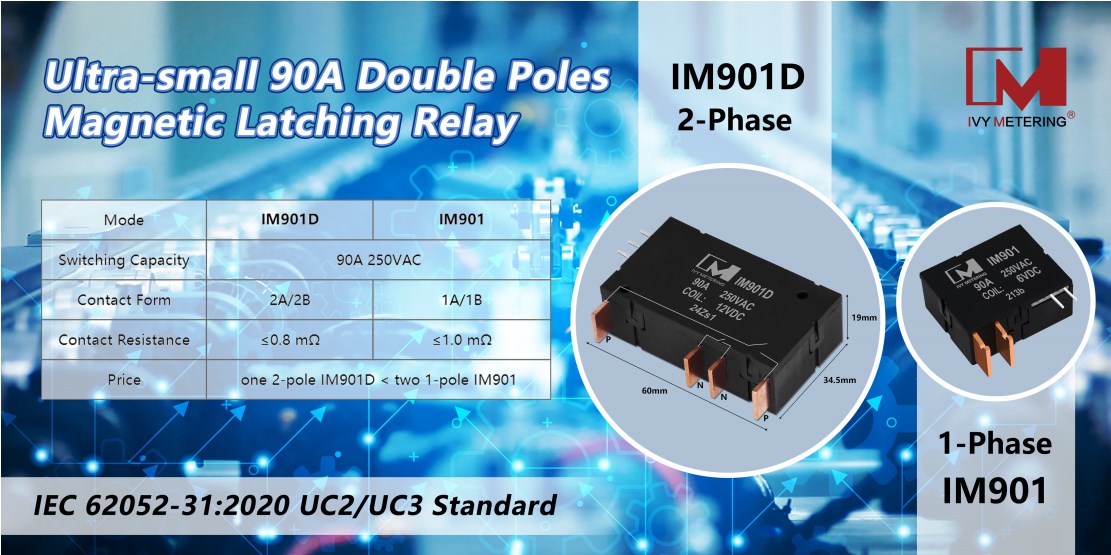

Even smaller, but just as powerful. The IM901D relay is the consistent further development in the IVY Metering double pole relay series. With its outstanding features and modular design principle, the polarized bistable relay cover a variety of energy management functions, such as load control, supply control, prepayment, etc.

Advantages of IM901D magnetic latching relay:

Price is economy for the replacement of 2 single pole relays.

Low contact resistance: 100% Guaranteed ≤0.8mΩ, Batch testing: 0.3mΩ

Ultra-small size: Ideal for compact designs, miniaturization

Bistable (magnetic latching): Low power consumption, energy saving

Double pole control: Enhanced safety, versatile switching

Magnetic latching: Reliable, maintains state without continuous power supply

The equipment operates safely and reliably, and has a long service life

It is easy to activate, and only requires pulse excitation, and can work with single or double coils
