IVY AEC-21Y-G1 Smart EV Charging Module: Core Components of AC Charger

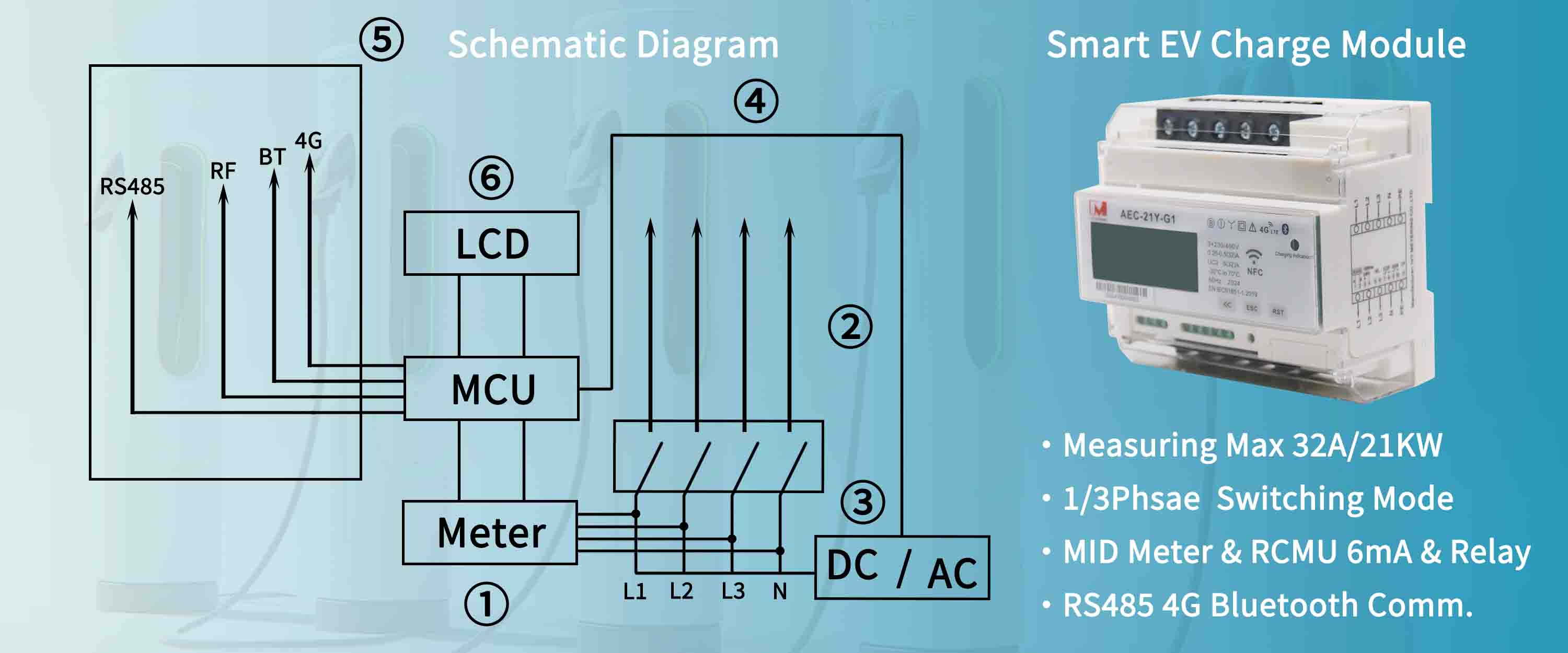

Tired of bulky, complex electric vehicle chargers? The interior is mainly composed of PCBA, which contains a variety of components, such as relays, leakage sensors, current transformers, AC DC power modules, etc. However, IVY AEC-21Y-G1 is different. It is not just smart module, but also a smart core AC charger component. It integrates charging, metering and leakage protection functions, supports flexible switching of three-phase/single-phase charging modes, has a maximum current of 32A, and is suitable for a variety of AC power environments. With a compact Din rail installation design. It can be freely matched with a variety of charging pile shells, taking into account practicality and aesthetics. It is widely used in home garages, commercial parking lots, community charging stations and long-term rental operation scenarios.
Key Advantages:
1.Compact Size, Powerful Performance
Flexible Installation: The AEC-21Y-G1 features a DIN rail mounting design, making it compact and easy to install directly or within a distribution box, adapting to various installation environments.
Robust Performance: Supporting both single-phase and three-phase charging, with a maximum charging current of 32A and a maximum charging power of up to 21kW, it meets the needs of a wide range of electric vehicles.
Wide Compatibility: It supports both Type 1 (SAE J1772) and Type 2 (IEC 62196-2) charging connectors, ensuring compatibility with the vast majority of electric vehicles on the market.
2. Smart Connectivity: Control at Your Fingertips
Remote Control: Equipped with a built-in 4G communication module, it supports remote authorization, start/stop charging, and real-time monitoring of charging status.
Multiple Payment Options: Supports various payment methods, including RFID card payment, mobile payment, and prepaid payment, for convenience and flexibility.
Local Communication: Features an RS485 interface for integration with local management systems, enabling data sharing and unified management.
Easy NFC: Support NFC card reading, swipe your card and charging starts.
3. Safety and Reliability: Multi-Layered Protection for Worry-Free Charging
Comprehensive Protection: Includes emergency stop, leakage protection, overvoltage/undervoltage protection, overload protection, short circuit protection, overheating protection, grounding protection, and lightning protection.
Stable and Durable: Complies with international standards such as EN IEC 61851-1:2019 and IEC 61851-21-2: 2018, and is CE-EMC and CE-LVD certified, ensuring reliable quality.
Real-time Alerts: In case of a fault, a warning symbol is displayed on the LCD screen, and an alarm is triggered via the buzzer.
4. User-Friendly: Intuitive Design, Simple Operation
LED Indicators: Clearly displays the working status of the charging module through red, blue, and green LED indicators.
Button Operation: Equipped with left, middle, and right buttons for page turning, exiting, and resetting.
LCD Display: The dot-matrix LCD screen displays charging voltage, current, energy, and duration.
Easy to install: 35mm DIN-rail mounting
The AEC-21Y-G1 ev charging module is your ideal choice for building a smart, safe, and efficient charging network. Contact IVY METERING now to learn more about the product and start a new era of green travel!
