The Advantage of 3-in-1 Replay Assembly
The Advantage of 3-in-1 Replay Assembly
IVY 3-in-1relay is composed of relay, transformer,shunt, terminal, terminal block. Before understanding the advantages of the 3-in-1 relay, let's have a look at the advantages of them parts by parts.
IVY relay has many advantages, such as: Enamelled wire: pure copper，compact size widely used In din-rail meter DC magnetic immunity up to 500mT stable performance to resist surge current Single and double coil can work only with pulse excitation small size,PCB installation Low power consumption and strong load capacity Safe and reliable, long life.
IVY's CT has two main advantages: its measurement accuracy and the material used to make the core.
1. In terms of accuracy, IVY's transformer has a highest accuracy of 0.01, which can meet the needs of different users.
2. As far as the core material is concerned,IVY's miniature current transformer is made of advanced ultramicrystalline material, which is also called nano-amorphous. As a new type of magnetic material,IVY's ultramicrystalline magnetic core has the advantages of high permeability, high rectangular ratio, low loss, low temperature stability and so on. Besides that, superfine crystal core has high saturation magnetic induction intensity, high permeability and low coercive force low loss and good stability for production of microcrystalline core material is known as "green material". IVY open jewels of current transformer with iron core is made of high quality ferrite materials, contact surface USES the mirror treatment, more smooth, fit more closely, higher permeability, lower loss.
3.The advantage of shunts
Such as one-body design, less contact resistance, more reliable connection, better temperature coefficient, better accuracy of meter, especially accuracy deviation high temperature, slight changes to avoid serious heat Less copper material and lower cost.
Such relay, shunt and transformer with so many advantages, combined together, becomes IVY's three-in-one relay. Let's take a look at the advantages of the 3-in-1 relay.

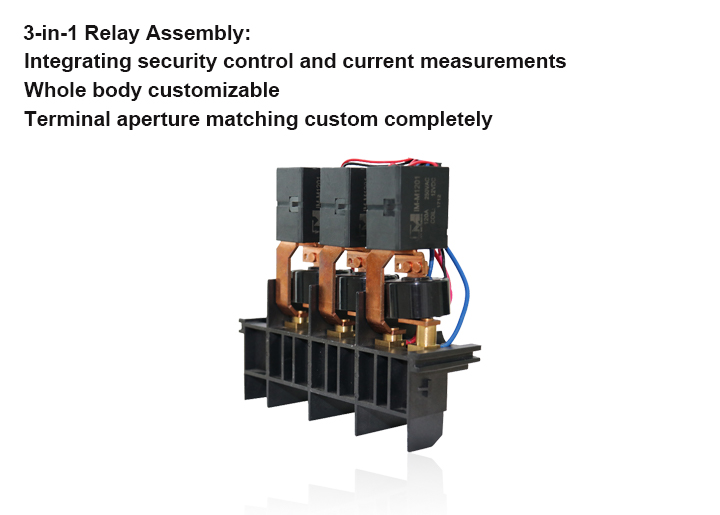

4.The advantage of 3-in-1 relay
Such as a variety of relay, transformer collocation is used, the different specification products. Customized terminals design, based on the customer to choose the varieties Collocation & transformer relay Integrated safety control and current measurement, all-round customization, three way relay control Maximum switching current: 60A~140ADrive, coil/motor Terminal board adopts PC/ABS, high strength insulating material Terminal aperture matching custom completely.
That's where IVY's three-in-one relay comes in. It's a great choice for three-phase energy meters. For more details, please visit www.ivy-metering.com.
