Product parameters
Product Details

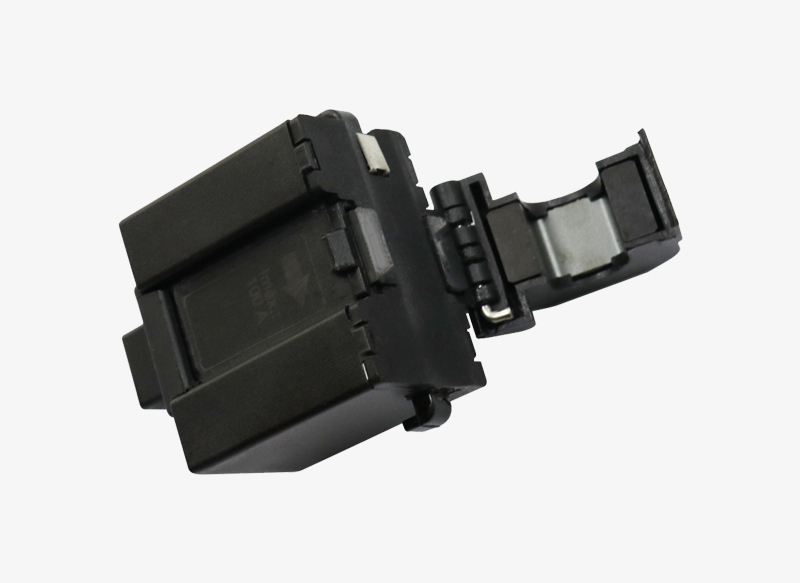

D129072 is a split core (open core) current sensor for Electrical Safety. Its structural design ensure fast speed load and unload under constant power, which is greatly improve the construction efficiency. The contact surface of iron core is machined by mirror surface, ensures that the contact surfaces are more compact and restless. widely used in smart meter, smart grid, monitoring device, EV charger, circuit protection, and machine equipment etc. Its main features as follow:
Split core allows you to directly monitor AC current without breaking or interrupting supply.
Easy to remotely monitor devices that place in inaccessible or harsh environments.
They are easy to install
Easily snapped over pre-existing wires
Ideal for Portable electricity monitoring device
Real-time monitoring, over-current/over-temperature protection, current value can be read without secondary transformation ratio
With M-BUS communication
Product Parameters
Measuring Range:200mA~100A
Current accuracy : Class 1
Temp accuracy: 2℃
Rated frequency: 50~60Hz
Threading bore dimension: ≤φ12mm
Response time: 200mS
Withstand voltage: ＞3000Vac
Temp range: -20/+85℃
Product Application
Sub-metering
Power factor correction devices
Metering (electrical energy meters)
Active power filter
Power measurement device for PLC
Sensing Overload Current
Ground fault detection
Digital fault recorder
In-factory display or in-home display
Electrical testing equipment and relay protection
Current, power, energy monitoring devices
