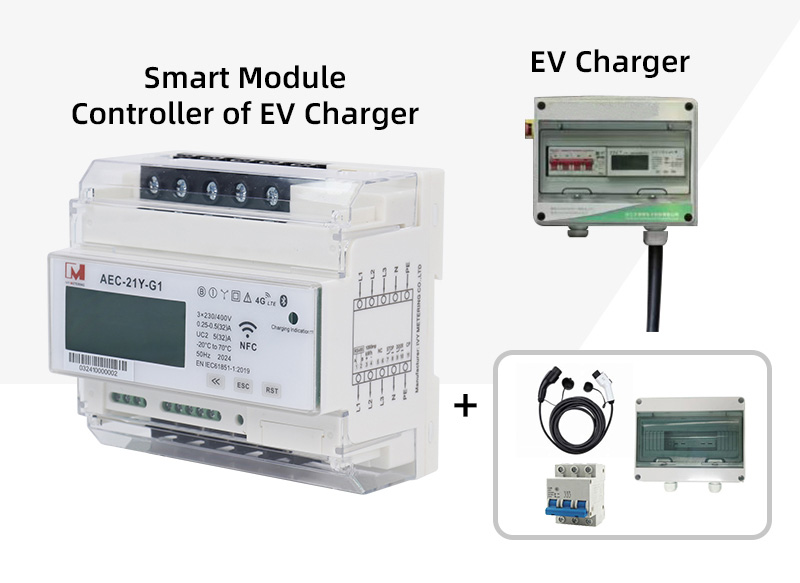

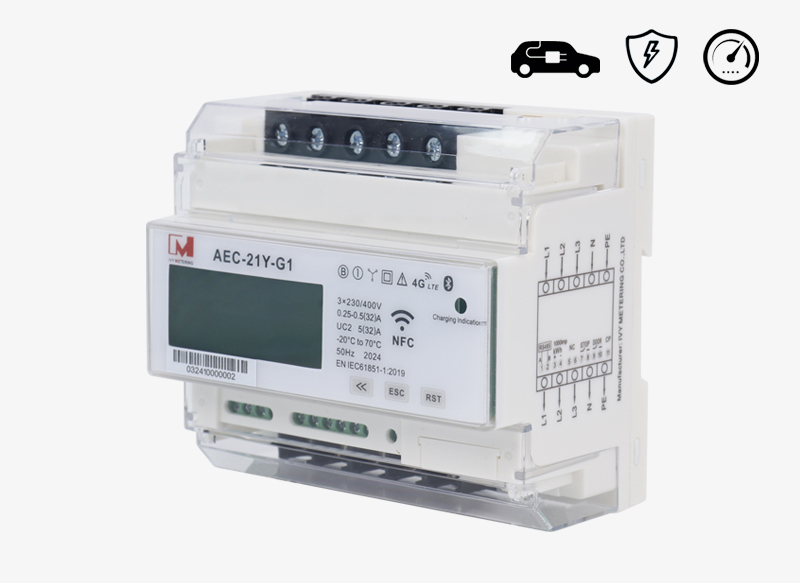

AEC-21Y-G1 Introduction
AEC-21Y-G1 is a highly integrated smart modular EV charging controller that strictly complies with the IEC61851-1 standard and has excellent performance of up to 32A charging current in mode 3.
The charging control unit allows users to remotely monitor the charging status of the charging pile through a web portal, start and stop charging, set charging time and adjust charging power as needed. In addition, AEC-21Y-G1 also provides users with authentication functions (such as NFC, RFID), ensuring the safety and convenience of charging operations.

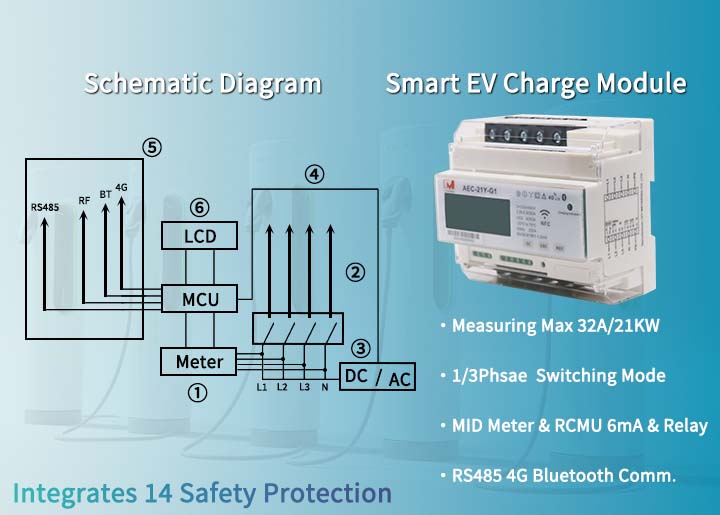

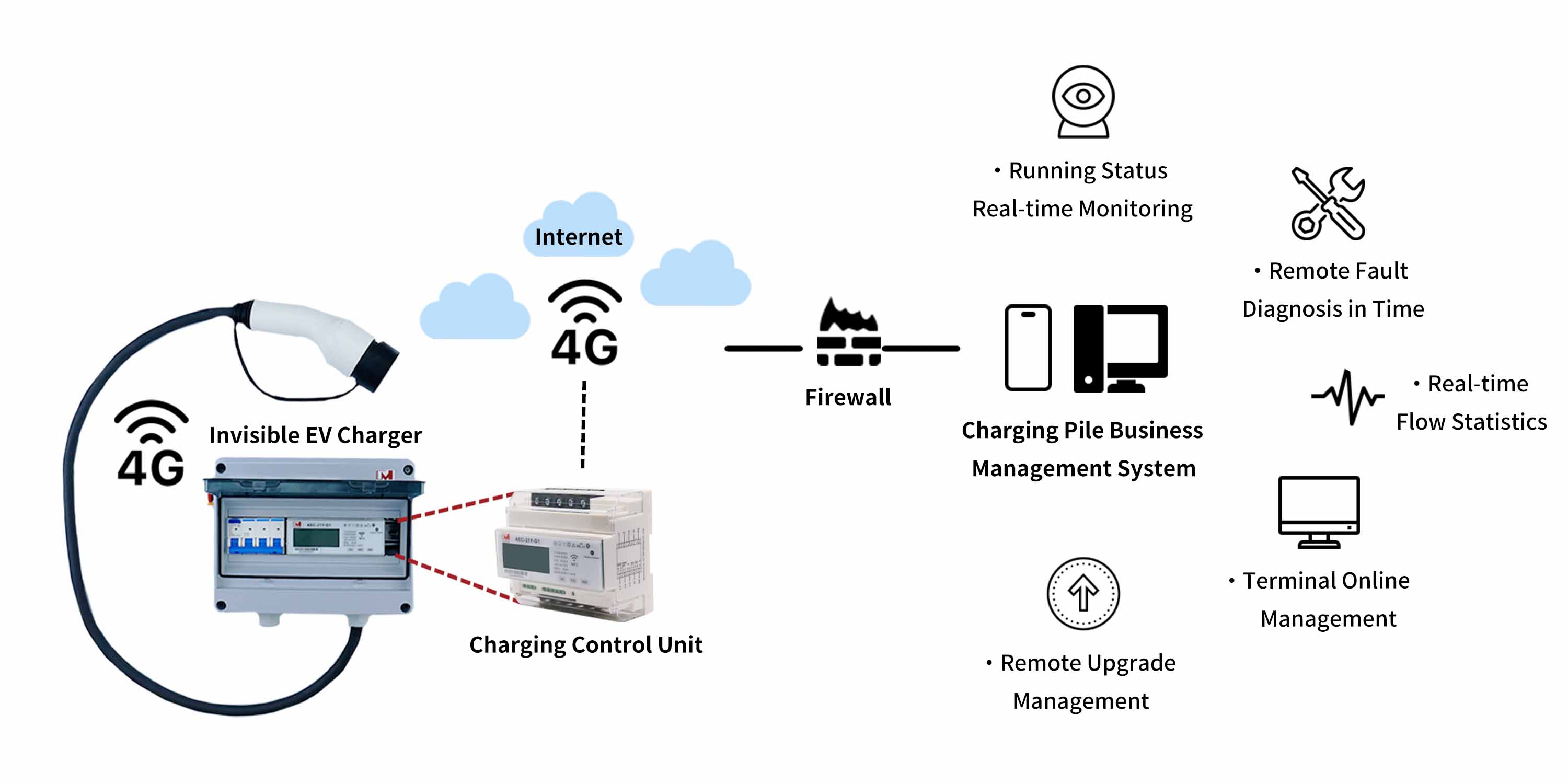

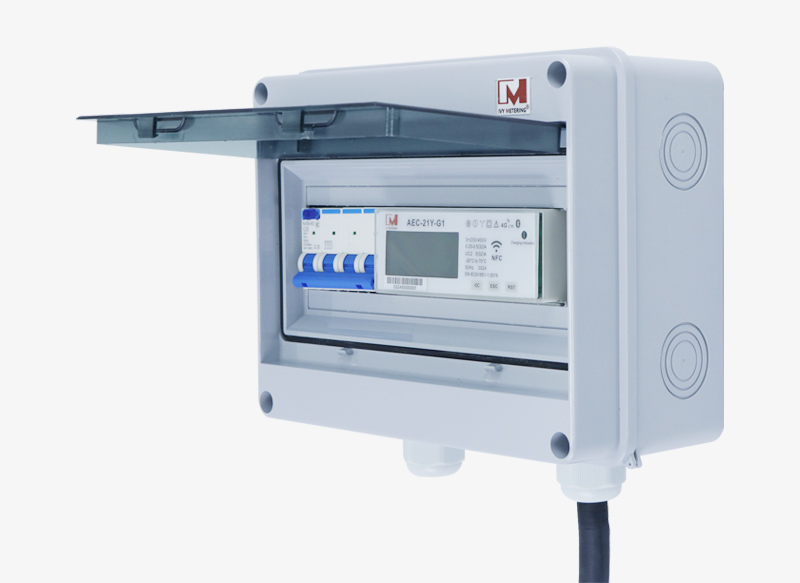

The built-in 4G-LTE of the AEC-21Y-G1 enables it to easily communicate with various background systems and access payment, load management, charging scheduling and access control functions provided by the platform. Whether it is a home or commercial application, the controller is a reliable solution for creating intelligent charging sites for electric vehicles.

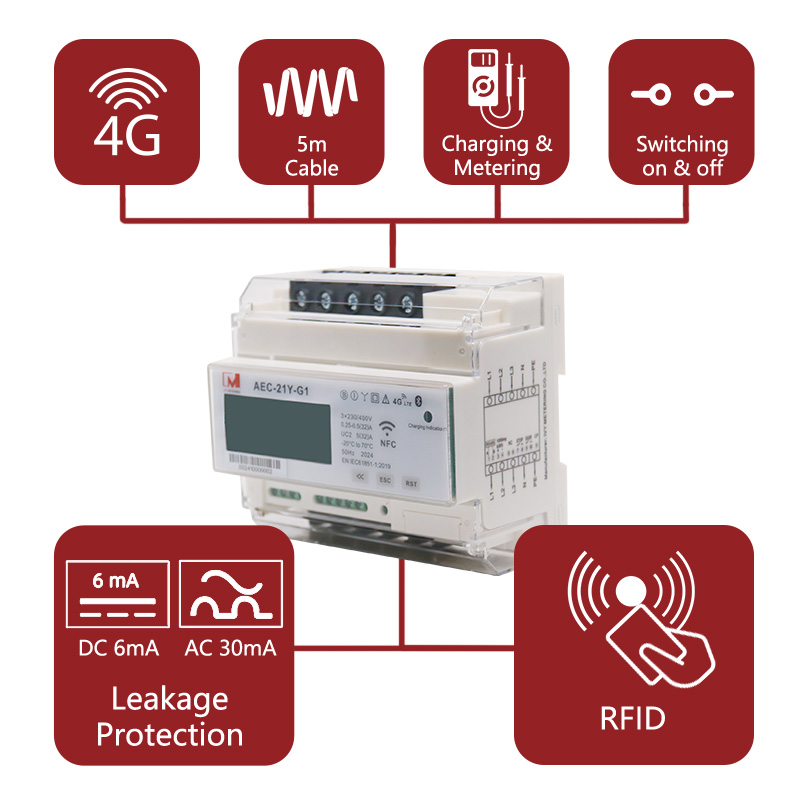

Product Features
• Complies with standard IEC61851-1 (mode 3 charging)
• Metering funtion
• Supports M-bus protocol, 4G, RS485 communication, OCPP-J-1.6/Wi-Fi/Ethernet pending
• Modular design, rail installation
• Adjustable charging current (maximum 32A)
• Status LED and LCD display
• RCMU detects 6mA or greater DC leakage current detection
• 14 Type safety protectoion, inclduing PEN fault protection, etc
Product Parameters

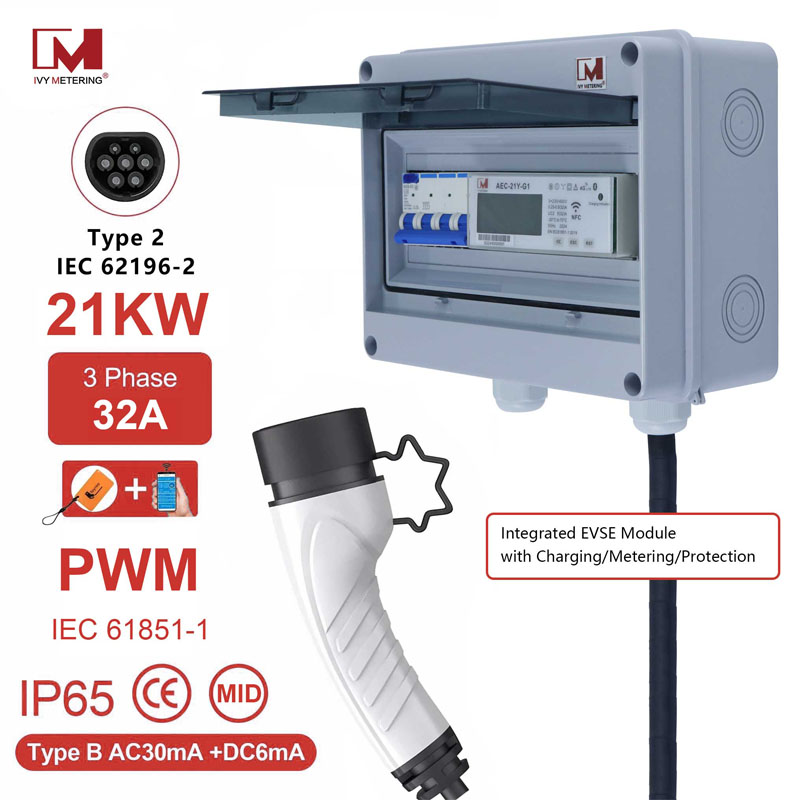

Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |
