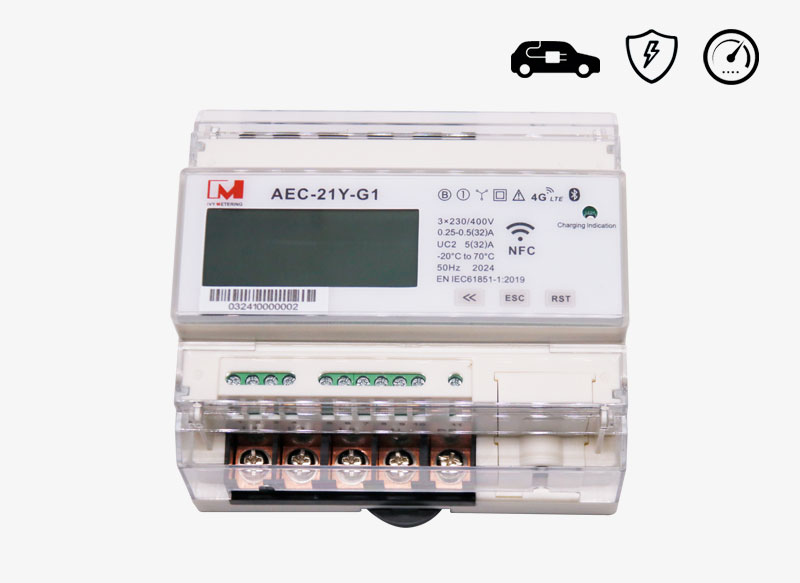

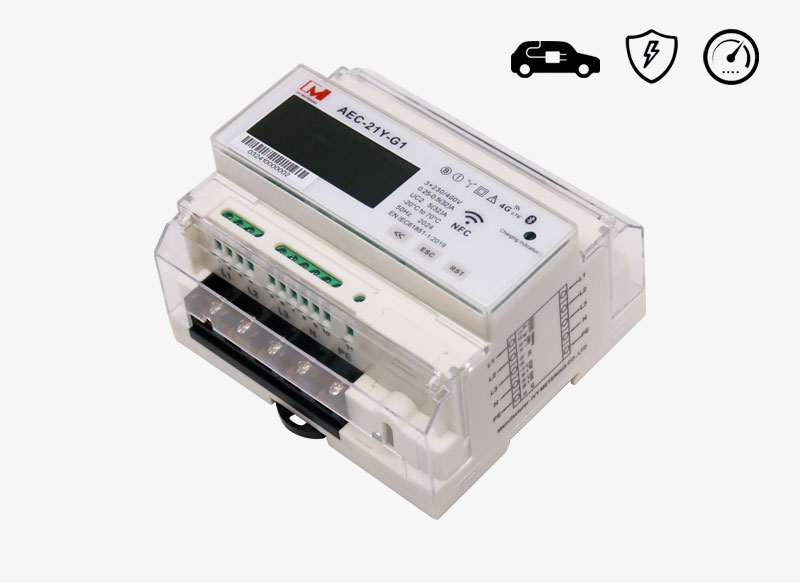

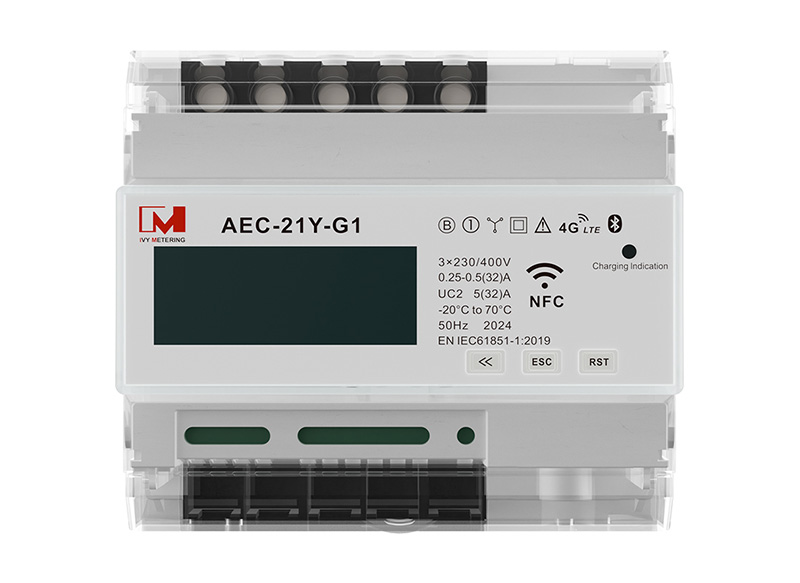

AEC-21Y-G1 Introduction
AEC-21Y-G1 EV charge controller provide efficient and reliable charging for all types of electric vehicles. It is a cutting-edge AC charging station controller to meet the evolving demands of EV charging infrastructure. This smart controller(complies with the IEC61851-1 standards) is specifically designed for Mode 3 charging stations, offering a perfect combination of advanced functionality, reliability, and intelligent features suitable for both residential and commercial EV charging applications.
It supports RS485/4G/Bluetooth communication, has highly flexible expansion capabilities, and is compatible with a variety of devices, including residual current detection devices (RCMU), LCD displays, energy meters, NFC cards etc. Integrates charging, metering, and 14 safety protection function. These features provide charging pile manufacturers and installers with a cost-effective solution that can meet charging needs in different application scenarios.
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |

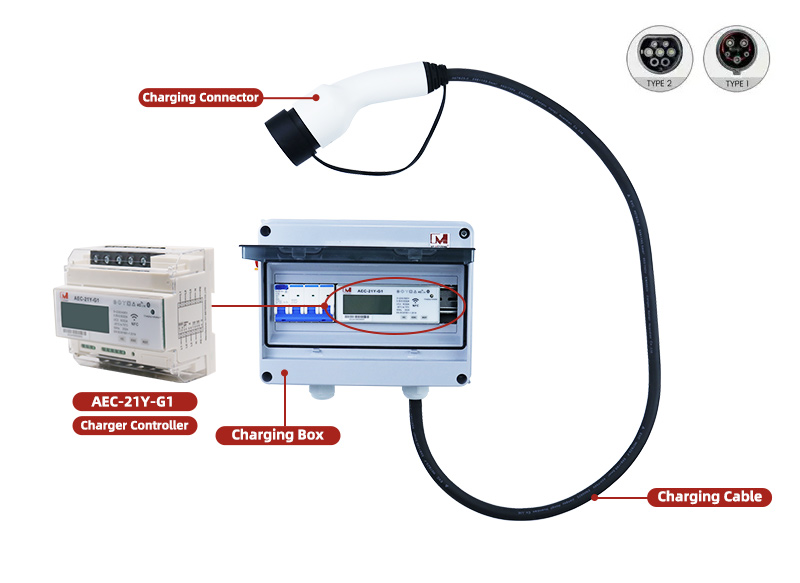

Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |
Product Function
14 Type safety protection:

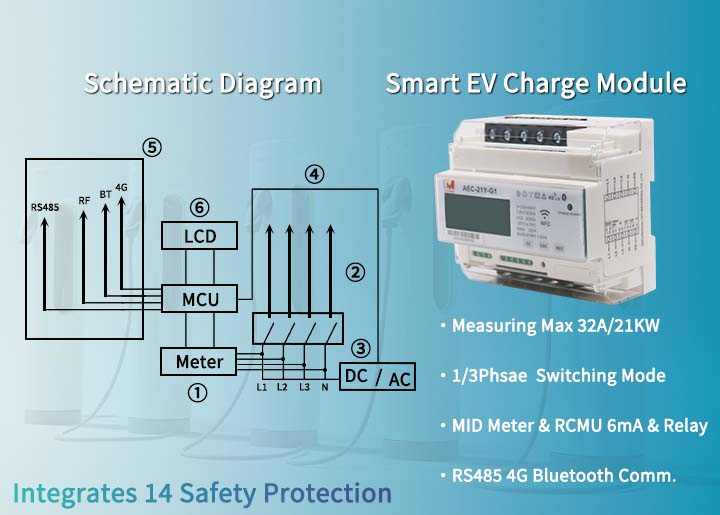

leakage protection, grounding protection, short circuit protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, surge protection, etc.
Metering function: built-in power metering, real-time reading of power, real-time upload
Payment function: card payment/mobile payment/prepaid payment, etc.
Communication function:
1.Remote communication function: with 4G remote communication, can achieve control, authorization, payment, setting and other functions
2.Convenient card swiping function: using NFC card reading method, can pay, can authorize charging.
3.Parameter setting function: use RS485 and Bluetooth to set parameters
Display function:LCD display: can display many parameters; Charging status indication; Page view function
Why choose IVY smart EV charging module, smart EVSE controller?
Tired of high - cost EV charging solutions? Discover the Next Generation Smart EV Charging Module from IVY METERING.

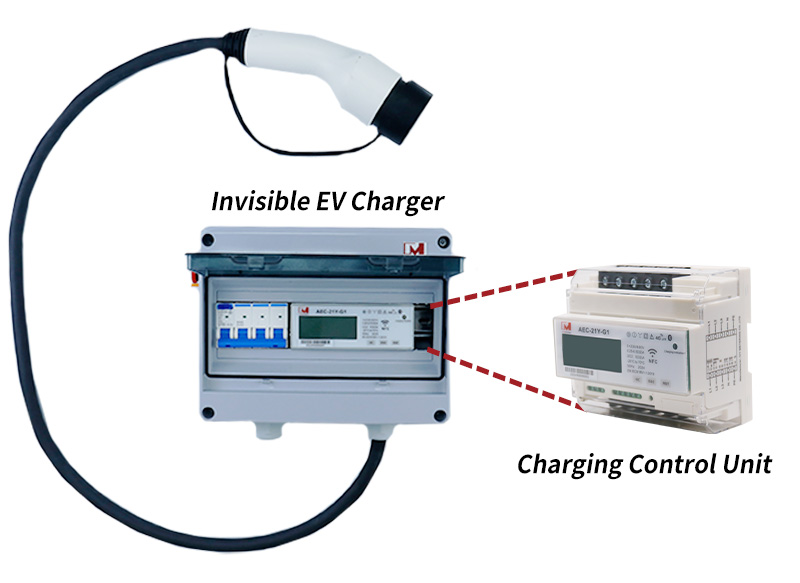

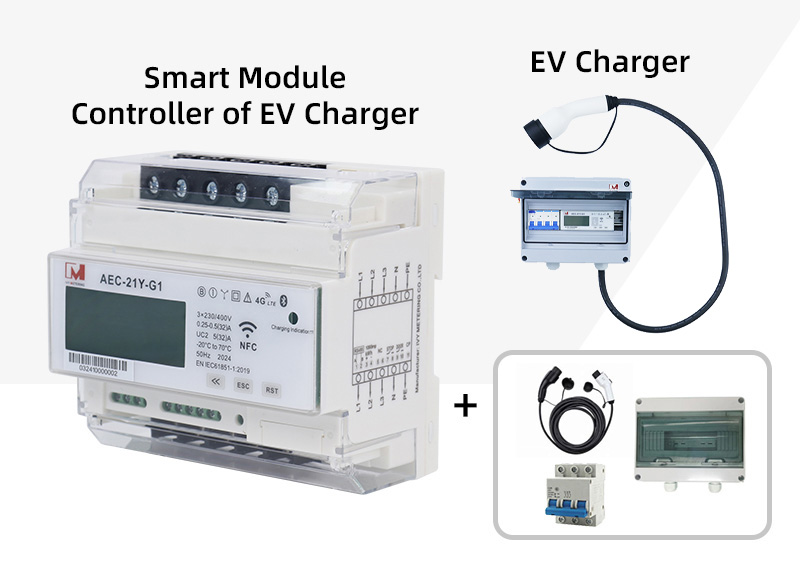

This all - in - one device combines a circuit breaker, EV charger, and smart meter.
With features like charging, leakage protection, and metering functions, it's a complete package.
Enjoy up to 70% cost savings! Its flexible single/three - phase design supports up to 32A and 21kW.

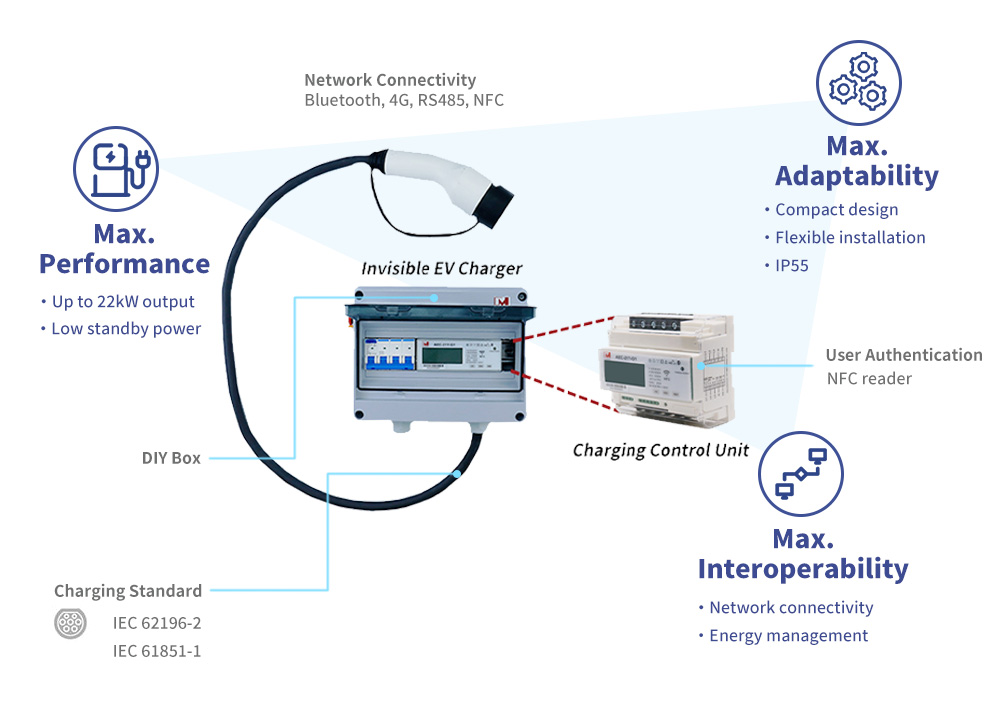

Multiple smart communication options including RS485, 4G, NFC, and Bluetooth ensure seamless management.
Compliant with major international standards. Upgrade your EV charging experience today!
