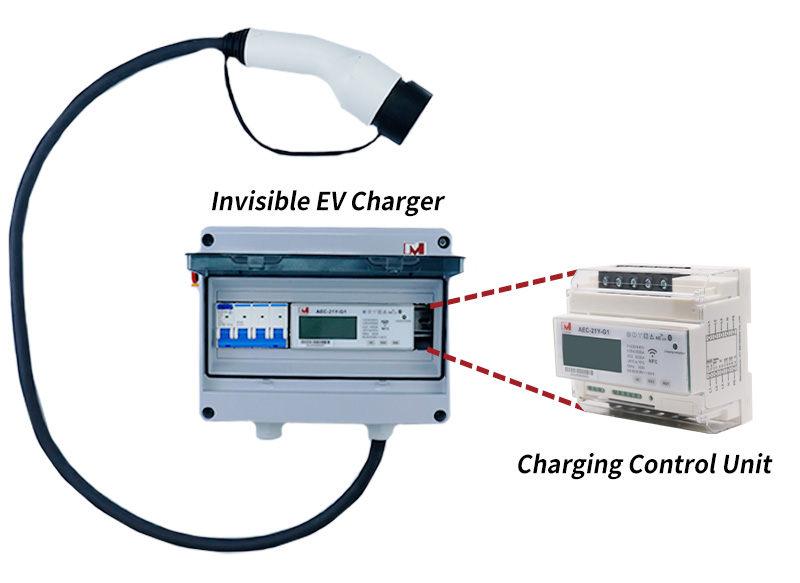

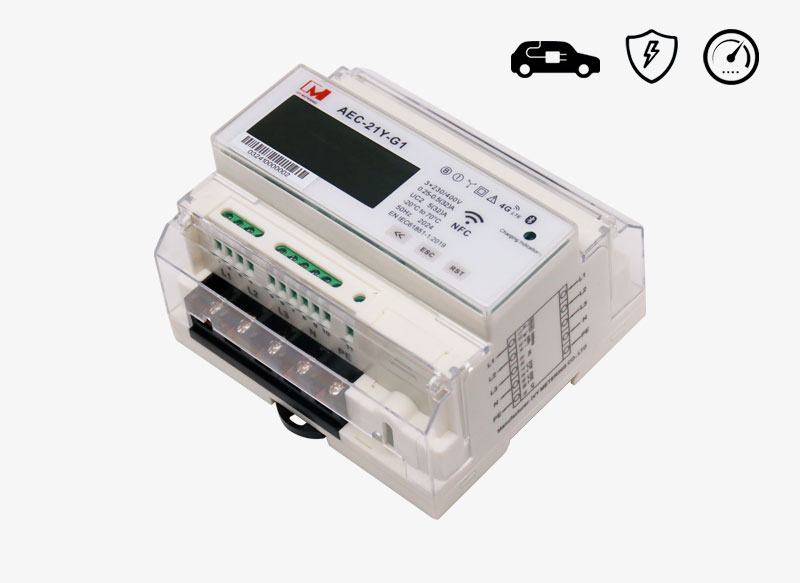

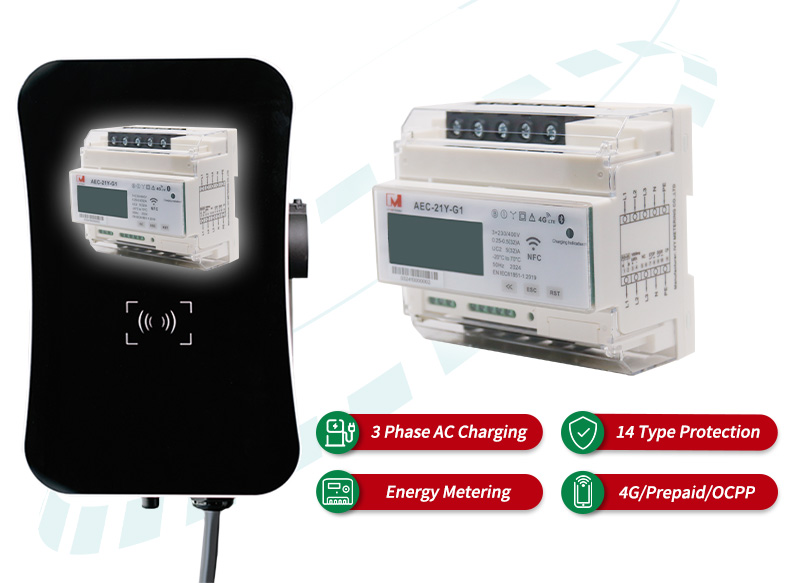

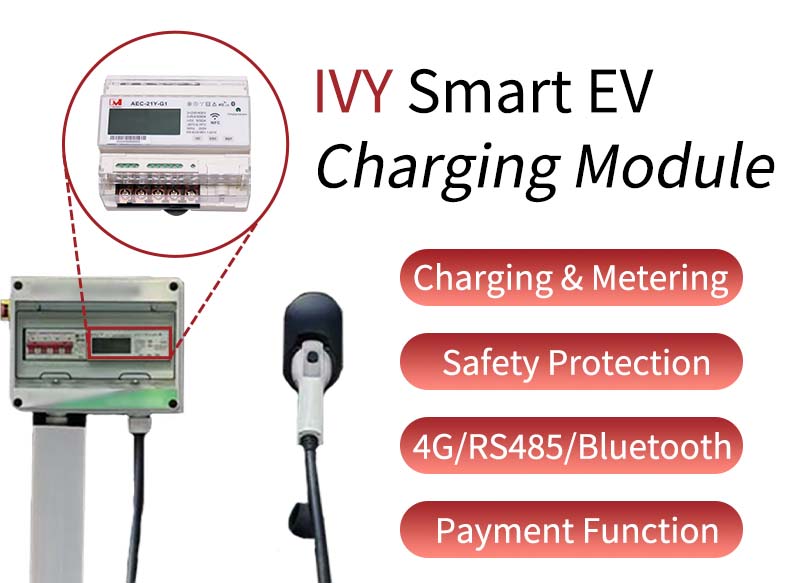

AEC-21Y-G1 controller is a DIN rail mounted control module for IEC 61851 compatible EV charge points. It integrates charging, metering and leakage protection functions, supports flexible switching of 3-phase/1-phase charging modes, has a maximum current of 32A and a maximum power of 21kW. The module is equipped with multiple communication modules such as RS485 and 4G, supports a variety of working modes such as local and remote operation and maintenance, is compatible with card swiping, mobile payment and prepaid functions, and has a small and compact rail-type installation design. It can be freely matched with a variety of charging pile shells.

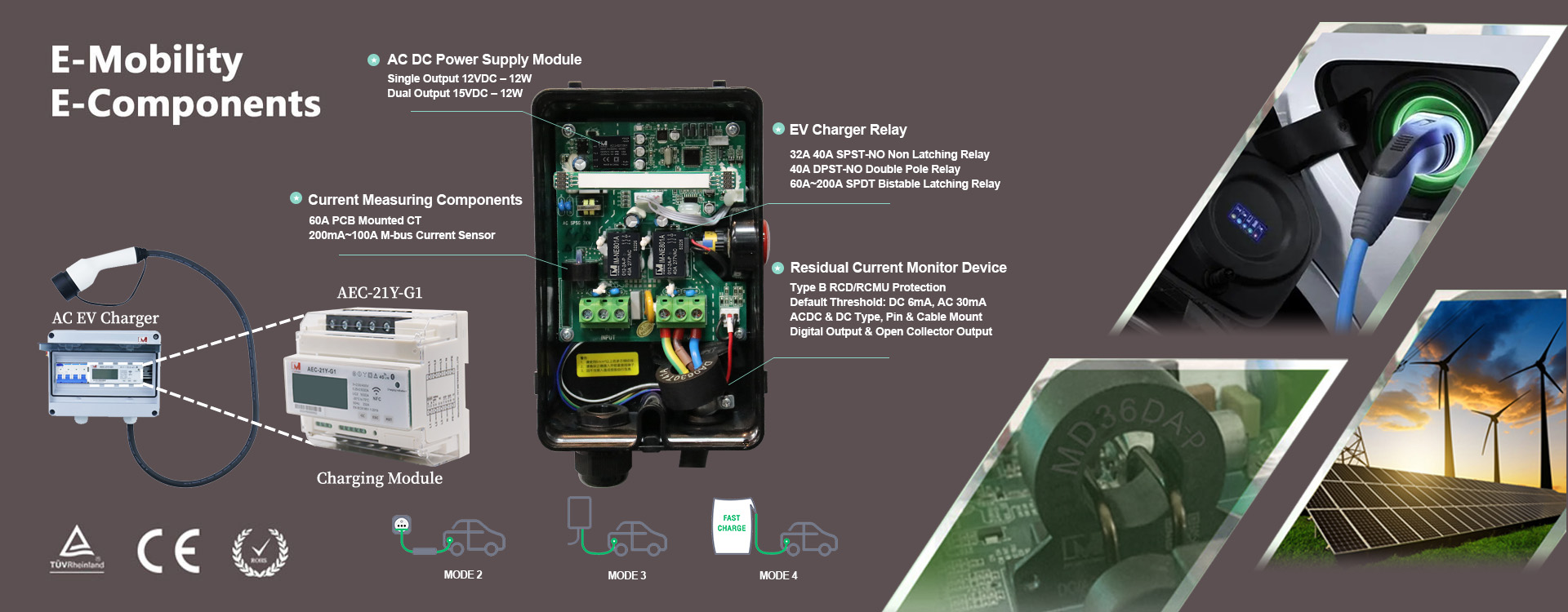

It is not just a smart module, but also a ev charge controller. Highly convenient&cost-effective, you only need to install an air switch to have a complete charging pile and a prepaid electricity meter at the same time. Whether you are an individual user, commercial operator or ev charger manufacturer, AEC-21Y-G1 can be the preferred core module for your charging pile deployment, meet the needs of various charging scenarios with high efficiency and flexible adaptability.
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |
Product Function
Safety protection function:
leakage protection, grounding protection, short circuit protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, surge protection, etc.
Metering function: built-in power metering, real-time reading of power, real-time upload
Payment function: card payment/mobile payment/prepaid payment, etc.

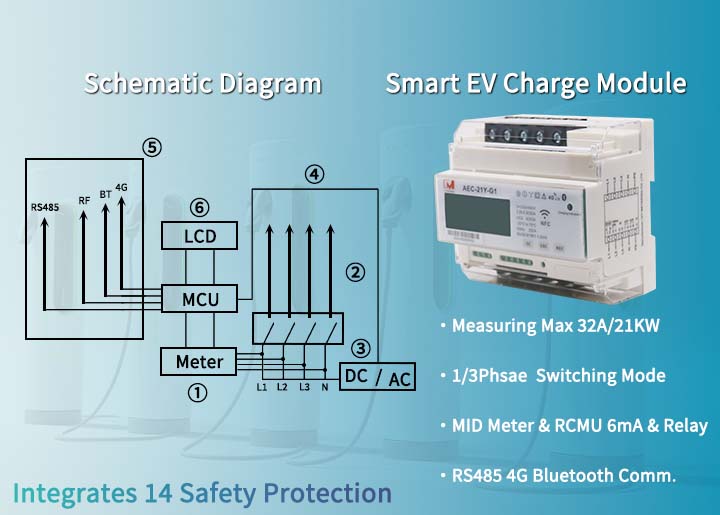

Communication function:

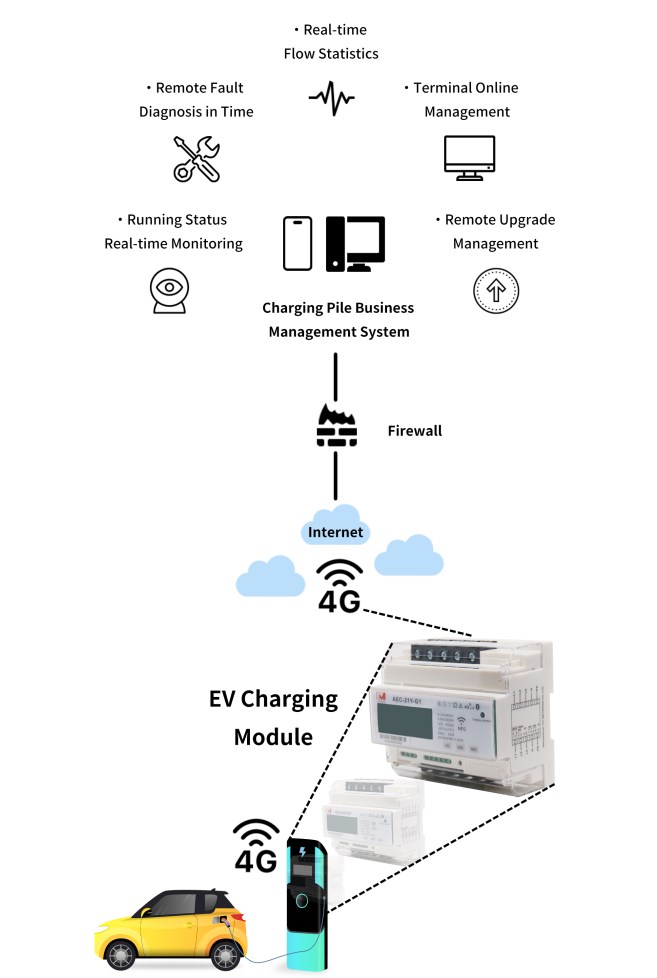

1.Remote communication function: with 4G remote communication, can achieve control, authorization, payment, setting and other functions
2.Convenient card swiping function: using NFC card reading method, can pay, can authorize charging.
3.Parameter setting function: use RS485 and Bluetooth to set parameters
Display function:LCD display: can display many parameters; Charging status indication; Page view function
