MD0630T41A-1 is a horizontal type AC DC leakage current sensor. It has the characteristics of high sensitivity, correct measurement, small size and compact/integration design. The leakage current detector can be set separately for AC and DC leakage. When the set current is reached, an alarm signal is generated, and the switch control signal is output at the same time. It is an automotive grade leakage current sensor from IVY also called residual current monitor (RCM), residual current detection (RCD), differential current sensor, leakage current detector and fault current sensor. Type A, B and B+, dedicated to detect to DC, AC and DC+AC leakage current measurement.
MD0630T41A-1 is a differential current (DI) sensor specifically developed for EV-charging, providing all-current sensitivity. The sensor can output signal in case of hazardous electrical faults (DC and AC). MD0630T41A-1 is a residual current monitor intended for the detection of DC and AC residual currents in 50Hz/60Hz AC installations. The RCD/RCM may be used to detect 6mA DC or 30mA AC Residual Currents in DC/AC, single phase or 3 phase installations.
As a electrical safety protection rcd device, MD0630T41A-1 monitors and immediately stops electrical risks that can occur during EV charging. The RCD sensor is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit. It will protect against DC (6mA) and AC (30mA) residual currents, and will signal to the Smart EVSE if a fault occurs. It is an ideal protection device against different leakage currents in applications of elevators, PV inverters, medical equipment, UPS devices, charging facilities and etc. It is the technology that brings us closest to protection for all known residual fault currents. In addition, our delivery time is also guaranteed.
Product Features
1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955
2. Small Size, Integration Design, Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional
3. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs; Digital Output
4. UART Comm, with Modbus Protocol; Standard: EN 61000-6-3:2007+A1 ,EN IEC 61000-6-1:2019
5. Professional Certification: TUV(IEC 62955/IEC 62752/IEC 61851-1); UL 2231-1/UL 2231-2; CE-EMC
6. Type B RCD/RCM for EV Charger Protection; Electrical Safety at Low Cost (Compared to Type B RCCB)
7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions
Product Parameters

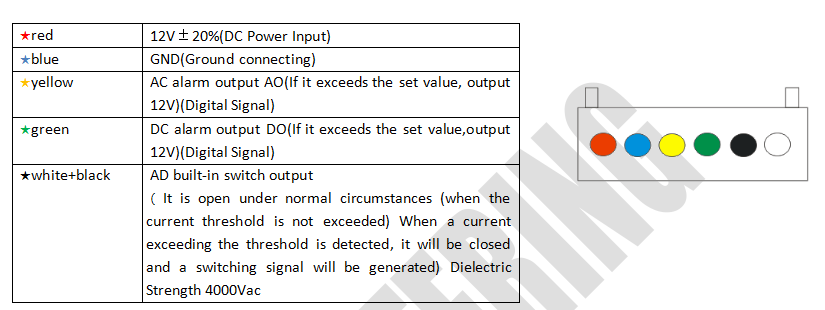

Wide voltage input: 12V±20%
Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)
Accuracy class: at 25℃, DC±0,2mA, AC±0.3mA
Working environment temperature: -25℃～+80℃
Installation: Cable/Horizontal Type
Plastic casing: SIP encapsulation
EV Charger Application
Leakage current measurement for OBC in-cable (mode 2) and for wall boxes (mode 3) contact and protection device
Automotive On Board Chargers (OBC) 1-3 phases 3.3 kW to 22 kW
V2X Vehicle to Everything (V2G Vehicle to Grid,V2L Vehicle to Load)
Insulated or None insulated On Board Charger
Wall box charger
