Product parameters

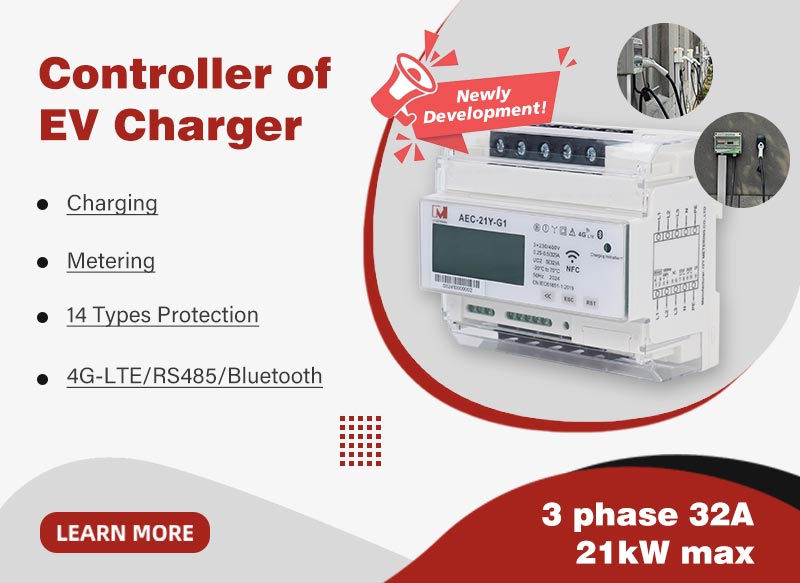

AEC-21Y-G1 Introduction
Not just a smart module, but also an EV charging controller. Comply with IEC 61851-1,CE-EMC,CE-LVD,MID Compliant

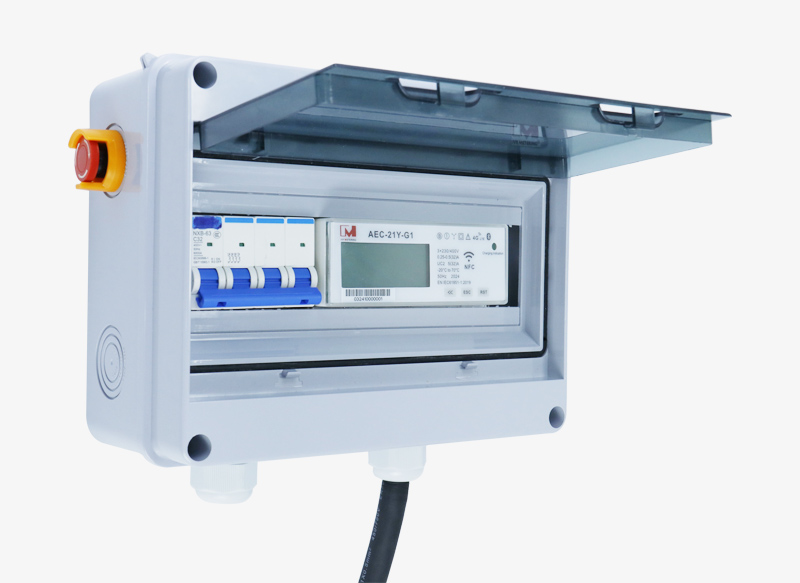

AEC-21Y-G1 charging module has a din rail-type installation method with a small volume. It features three-phase charging (also supports single-phase), a max current of 32A, and a max power of 21kW. It uses standard interfaces and protocols, with RS485 local and 4G remote communication. Supports plug-and-play, local/remote authorisation, and prepayment. Integrating charging, metering, leakage protection and other functions, and meeting the needs of diverse charging scenarios with efficient performance and flexible adaptability.
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |

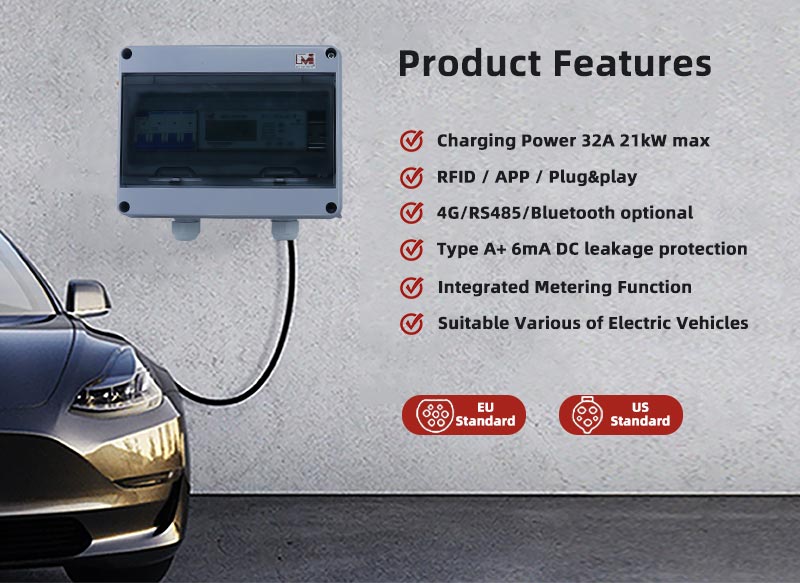

Product Function
Safety protection function:
leakage protection, grounding protection, short circuit protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, surge protection, etc.
Metering function: built-in power metering, real-time reading of power, real-time upload
Payment function: card payment/mobile payment/prepaid payment, etc.
Communication function:
1.Remote communication function: with 4G remote communication, can achieve control, authorization, payment, setting and other functions
2.Convenient card swiping function: using NFC card reading method, can pay, can authorize charging.
3.Parameter setting function: use RS485 and Bluetooth to set parameters
Display function:LCD display: can display many parameters; Charging status indication; Page view function
