Product parameters
Product Details

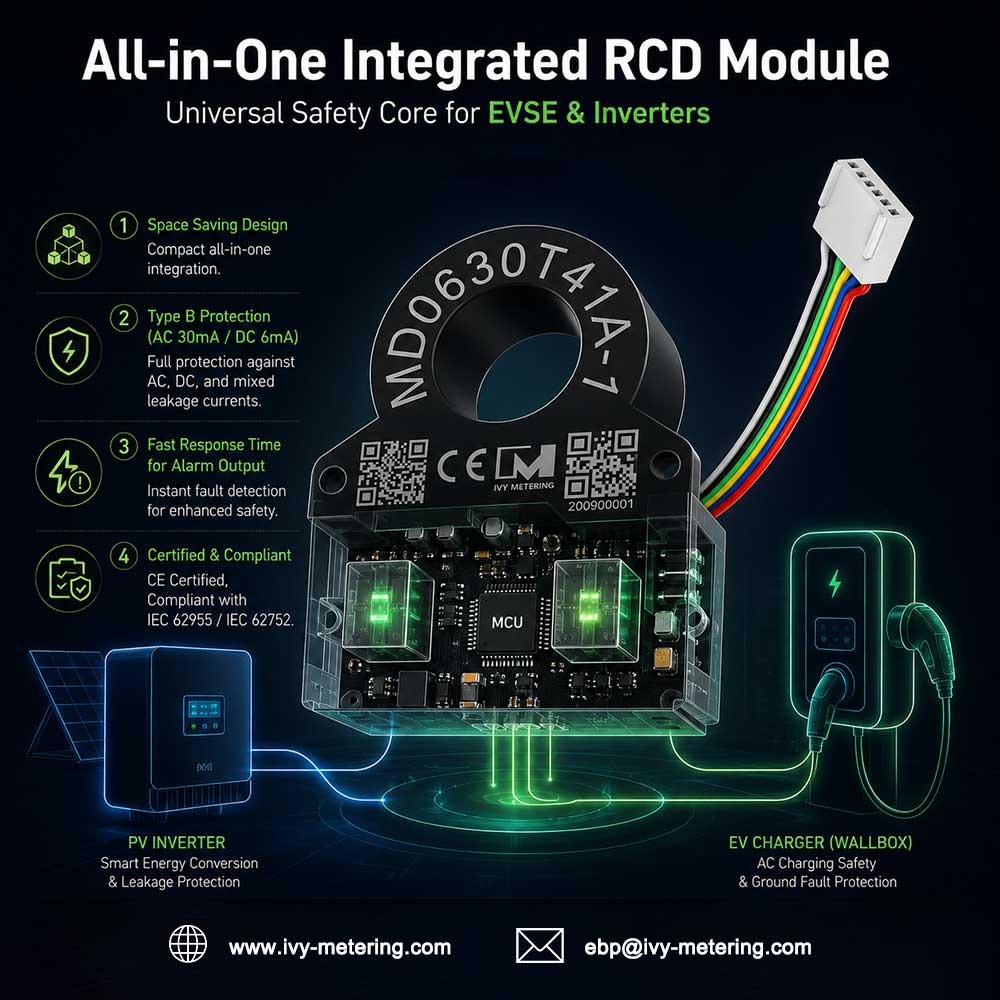

MD0630T41A-1 is a residual current detection sensor for EV charging station. It has the characteristics of high sensitivity, correct measurement, small size and compact/integration design. The residual current monitor can be set separately for AC and DC leakage. When leakage current is detected, an alarm signal is generated, and the switch control signal is output at the same time. It is an automotive grade leakage current sensor from IVY also called residual current monitoring (RCM), residual current detection (RCD), differential current sensor, leakage current detector and fault current sensor. Type A, B and B+, dedicated to detect to DC, AC and DC+AC leakage current measurement. It is intended to detect dangerous residual currents and thereby mitigate the risk of electric shock or fire. In the case of EV charging, there is a risk of AC and DC residual currents, and it is vitally important that the RCD can be used to detect AC and DC residual currents. It can monitors DC (6mA) and AC (30mA) residual currents, and will signal to the Smart EVSE, if a fault occurs.
MD series RCM sensor are used where DC residual currents could occur, in addition to normal AC, can detect high-frequency AC and pure DC earth leakage currents. The tripping conditions are defined with different frequencies from 50Hz to 1kHz. Reducing the risk of fire or electrocution through output digital alarm signal. IVY leakage sensor have numerous applications and are suitable for many industries including electric vehicle charging, photovoltaic systems (solar panels), industrial device, medical device, new energy, DC screen, fire distribution cabinet, IOT field and any installation where there is a risk of DC current flowing. It is the technology that brings us closest to total protection for all known residual fault currents. In addition, our delivery time is also guaranteed.
Product Features
1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955
2. Small Size; Integration Design; Horizontal(Cable Type) Mount
3. Built-in Optical/Coupler Output Switch, Dielectric Strength 4KVAC
4. High and Low Level Digital Signal(Push-pull Output)
5. Certification: TUV(IEC61851-1); UL2231-1/UL2231-2; IS17017; CE-EMC
6. Type B RCD Protection; Electrical Safety at Low Cost (Compared to Type B RCCB)
7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions
Product Parameters
Wide voltage input: 12V±20%
Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)
Accuracy class: at 25℃, DC±0,2mA, AC±0.3mA
3 Ways Output: DC alarm, AC alarm, AC/DC alarm
Working environment temperature: -25℃～+80℃
Installation: Cable/Horizontal Type
Plastic casing: SIP encapsulation
EV Charging Application
Where the EV supply equipment is equipped with a socket-outlet or vehicle connector for AC use in accordance with IEC 62196(all parts), protective measures against DC fault current shall be taken. The appropriate measures shall be:
Type B RCD or Type A RCD and appropriate equipment that ensures the disconnection of the supply in case of DC fault current above 6mA
In the IEC 61851-1, it is clearly specified that residual current protection in AC charging equipment shall adopt type B or type a +6ma smooth DC RCD. At the same time, it is clearly stated in the relevant IC-CPD standard IEC62752-2018 that the residual current protection device shall detect smooth DC 6mA.
