IVY is specialized in the research, development, and manufacturing of high powered, high quality, highly reliable latching relays. We offer latching relays from 32A to 200A for both single, dual and three phase switching purposes. Our relays are designed to meet the industry's highest performance standard and it offers the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.

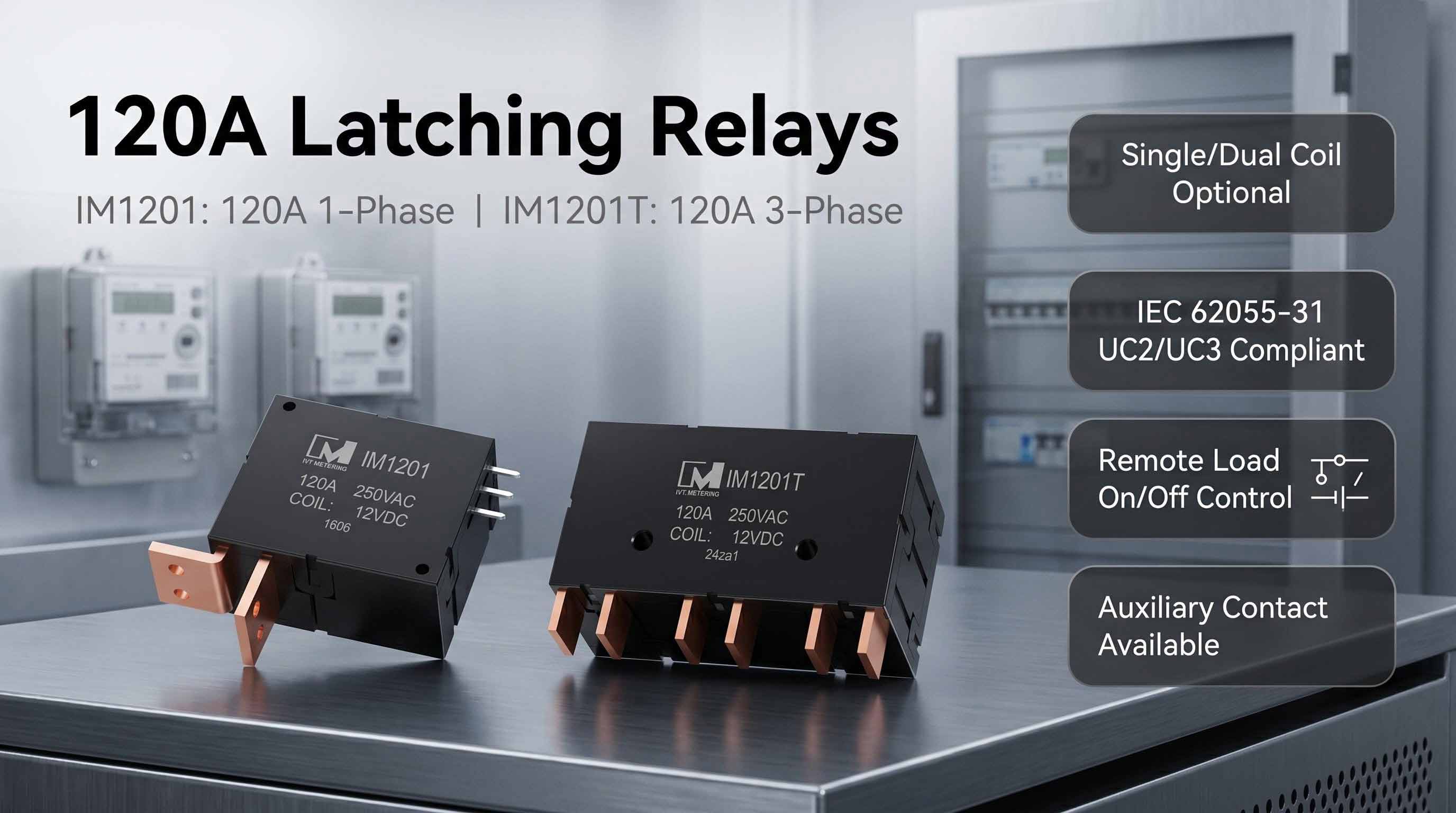

IM1201T is a three-phase latching relay. It has stable performance and long service life. The three phase relay switch has the following characteristics:
Three Poles Contact(Normally Open, Normally Close), Three Way Control;
Maximum Switching Current: 120A, Strong Load Capacity;
CT Assembled, Low Consumption, Pulse Driving, Environment-friendly.
Product Parameters
Rated Load 120A 250VAC
Contact Form 3A/3B
Rated Coil Consumption: 3.0/6.0W(30ms)
Dielectric Strength: 4kV
Compact Size:78.6*40.3*37.8mm
Contact Material: AgSnO2
Max. Switching Power: 30000VA
Contact Resistance; <2.0mΩ
Pick-up Time; 30ms
Release Time: 30ms
Electrical Endurance; 10000 Cycles
Mechanical Endurance; 100000 Cycles
Temp.Rise; ≦55k
Ambient Temperature: -40℃~70℃
Ambient Humidity; 5%~98%RH
