Product Details

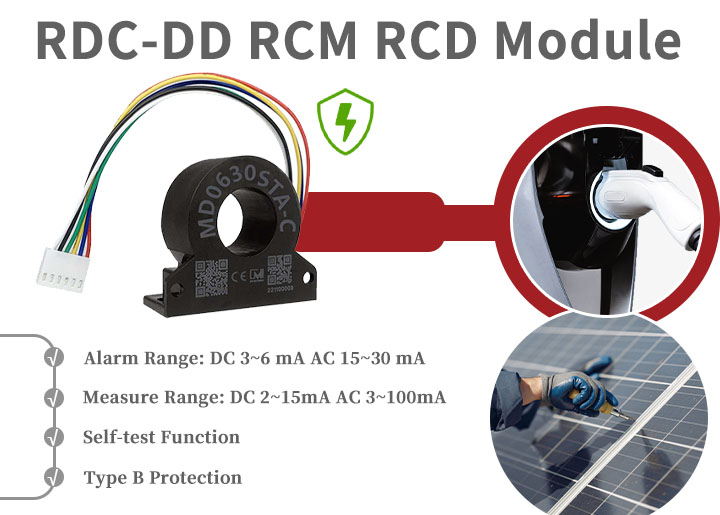

MD36DA-P is a high sensitivity dc leakage current sesnor also called RDC-DD or DC RCM intended for the detection of DC residual currents at 6mA or greater in 50Hz/60Hz AC installations. This differential current sensor detect smooth DC and half-wave DC currents.

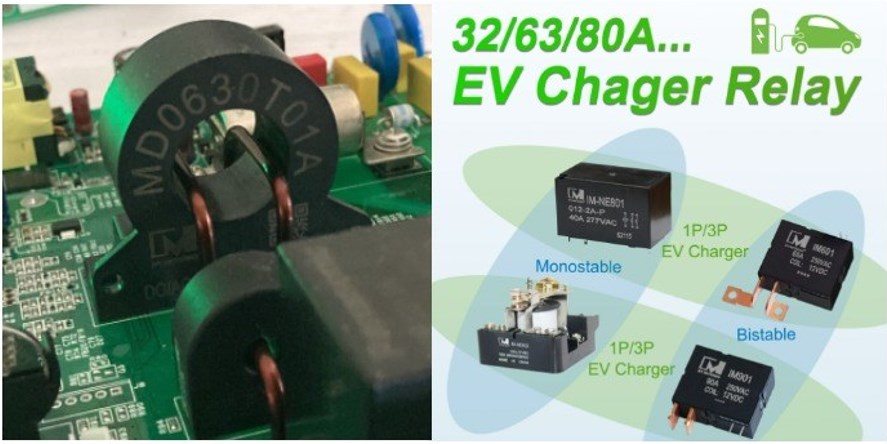

The RDC-DD is a compact solution designed to be PCB mounted. When a DC leakage current of 3~6mA is detected, an alarm signal is output. It can judge whether the sensor is in a normal working state in real time through the self-test function. It is primarily intended for use in EV charging stations to output alarm signal under a DC residual fault current condition. It may also be used to detect DC residual currents in DC, single phase or multiphase installations.
IVY MD series residual current sensors are optimized for fast, low-cost assembly, combined with the highest product and production quality. In addition to the use of charging piles. Also suitable for photovoltaic systems, medical instruments, inverters, UPS, smart home, industrial machines, IOT etc. There is a DC component leakage scenario. Provide more reliable protection. Protecting personal and electrical equipment safety.
Product Features
DC 2~15mA Micro Current Detection
DC 3~6mA Alarm (Needn’t Set)
Self-test Function, Open Collector Alarm Output
Integrated Design, PCB/Vertical Type Installation
B Type Leakage Current Detection(type-A+6mA DC)
Comply with IEC62752/IEC62955 Standard
Product Parameters
Product Applications
1.Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation
2.can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.
3.can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.
4.In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation
