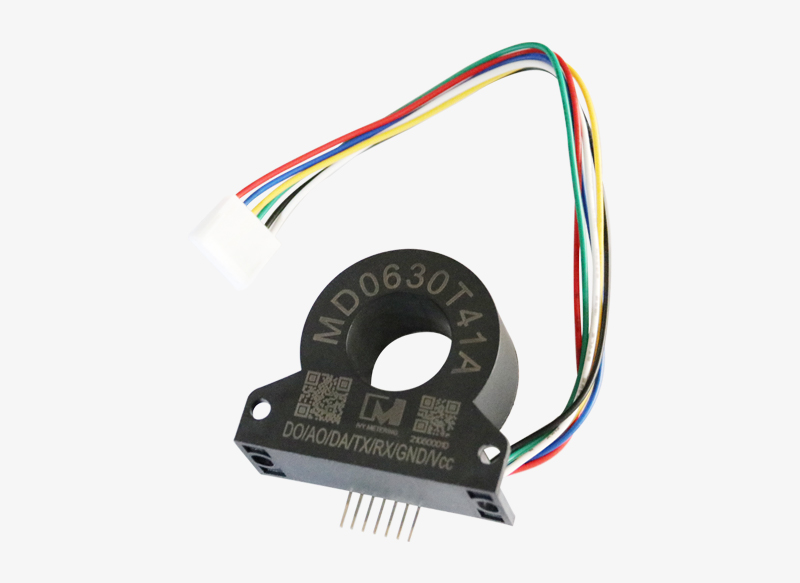

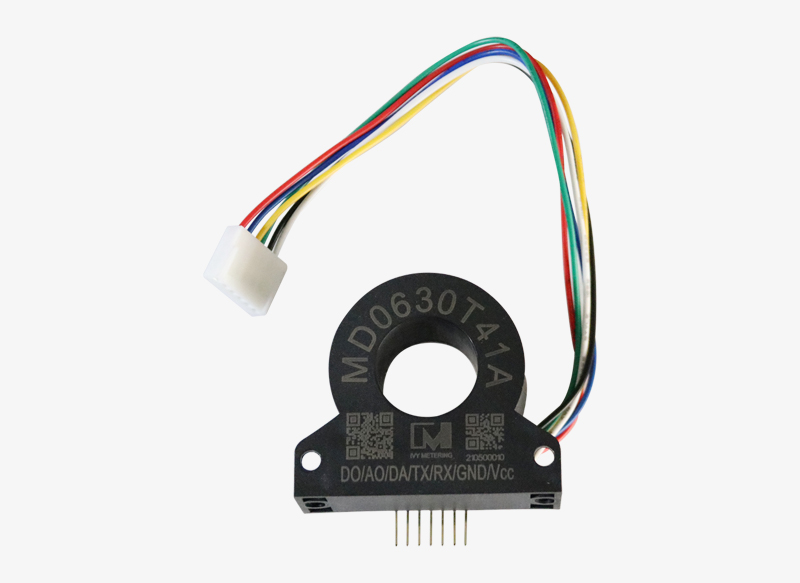

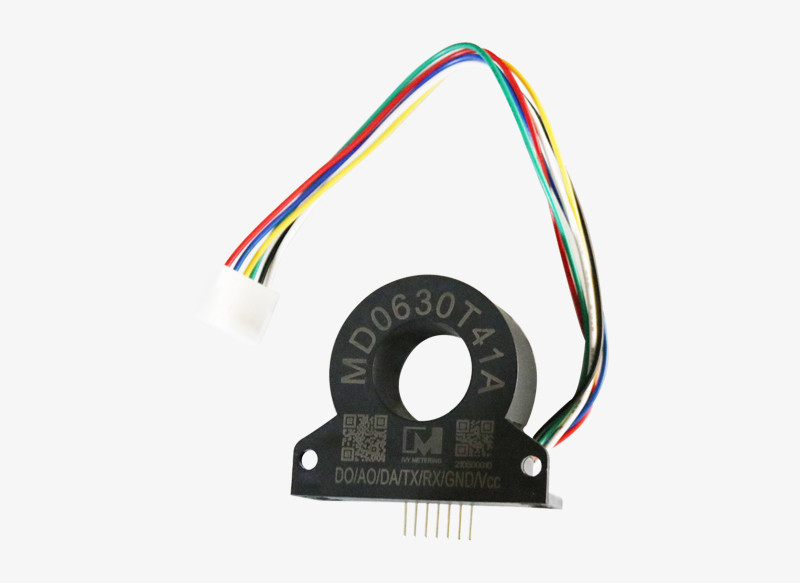

MD0630T41A is an ac dc leakage current sensor(also called RCD/RCM). It has the characteristics of high sensitivity, correct measurement, small size and compact/integration design. The leakage current detector can be set separately for AC and DC leakage. When the set current is reached, an alarm signal is generated, and the switch control signal is output at the same time. The RCD sensor is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit. It will protect against DC (6mA) and AC (30mA) residual currents, and will signal to the Smart EVSE if a fault occurs.

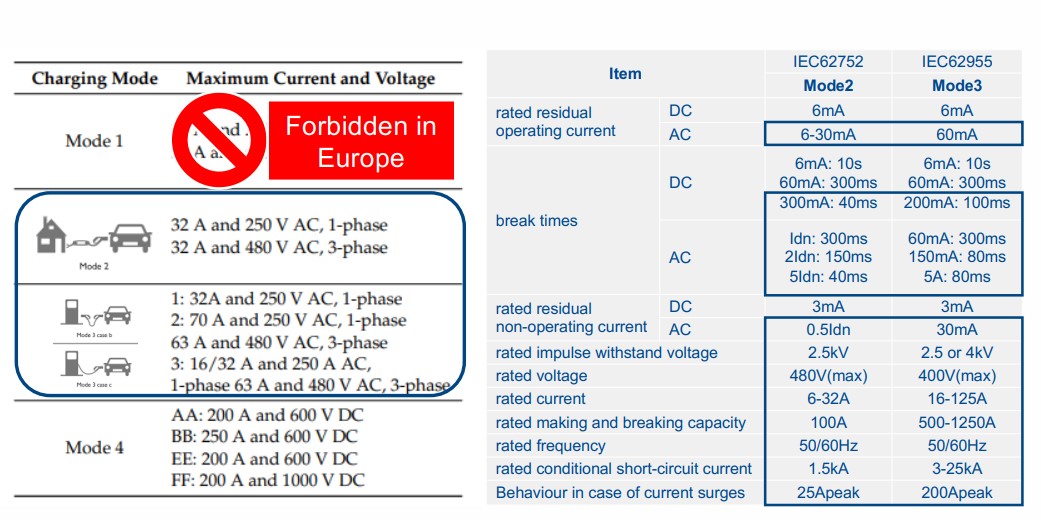

To satisfy new standards including IEC 62752, IEC 62955, IEC 61851-1 etc, the charging of electrical vehicles requires residual current sensors to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). This is new type of Fluxgate Current Sensor; it's based on the principle of magnetic modulation. It can be used to measure leakage currents including DC, AC, and AC and DC stacks, generally used as a DC leakage current detection and protection in equipment that uses DC operation.
MD series sensor are type B RCD/RCM, which are used where DC residual currents could occur, in addition to normal AC, can detect high-frequency AC and pure DC earth leakage currents. The tripping conditions are defined with different frequencies from 50Hz to 1kHz. Reducing the risk of fire or electrocution through output digital alarm signal. Type B RCD is suitable for loads with single/three-phase rectifiers, such as variable speed drives, photovoltaic systems, electric vehicle charging stations and medical equipment etc.
Product Feature
1. Fixed 6mA DC and 30mA AC trip levels; 3000A surge withstand capability; "Fault” output – Open collector
2. Small Size, Integration Design, Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional
3. Integrated self-monitoring and test functions, Digital Output, Residual Fault Leakage Current Protection
4. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs
5. URAT Comm, with Modbus Protocol; Standard: EN 61000-6-3:2007+A1 ,EN IEC 61000-6-1:2019

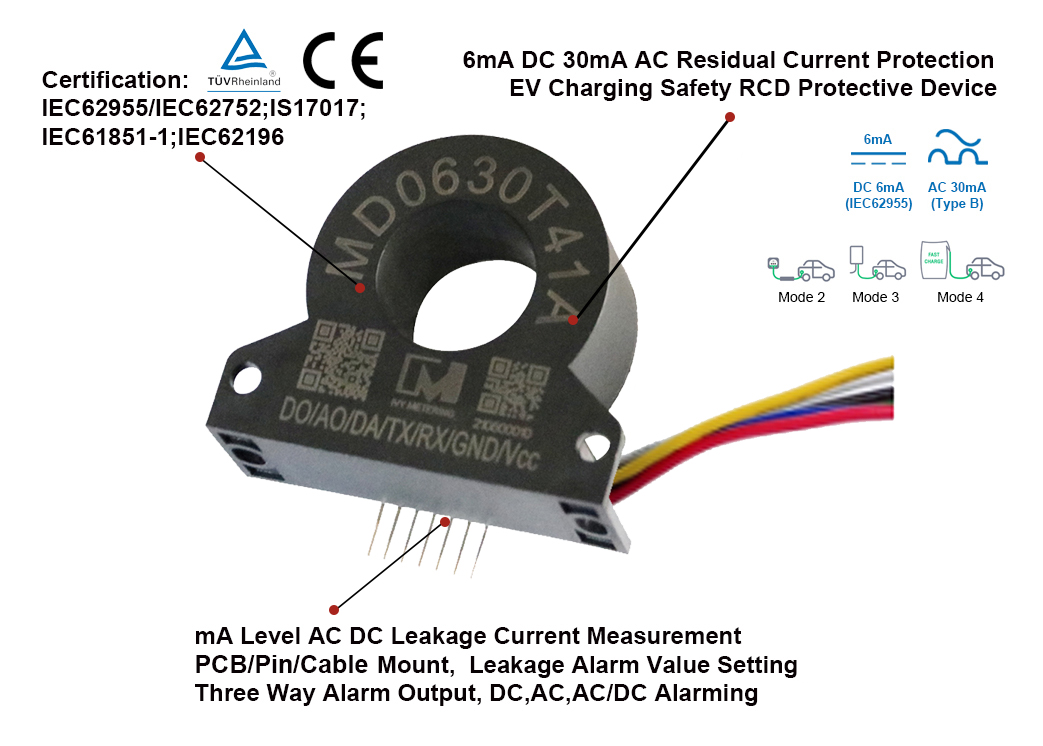

6. Professional Certification: TUV(IEC 62955/IEC 62752/IEC 61851-1); UL 2231-1/UL 2231-2; CE-EMC
7. Used in EV Charger Project (Load current up to 200A (1-phase) or 150A (3-phase))
Product Parameters
Wide voltage input: 12V±20%
Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)
Accuracy class: at 25℃, DC±0,2mA, AC±0.3mA
Working environment temperature: -25℃～+80℃
Installation: Pin&Cable Type
Plastic casing: SIP encapsulation
EV Charging Application
Charging mode 2
IC-CPD in charging cables for electric vehicles (EV) and plug-in hybrid electric vehicles (PHEV)
Charging mode 3
Wallboxes for charging EV and PHEV
Charging piles for charging EV and PHEV
Charging mode 4
DC charging station and optional in on-board charger applications.
