Product parameters
Product Introduction
IVY offers MD0630T01A for monitoring and providing shock protection and fault protection on AC and DC installations and for EV charging applications. MD0630T01A is a RCD sensor specifically developed for EV-charging providing all-current sensitivity. The sensor can issues alarm signal in case of hazardous electrical faults (DC and AC). It has the characteristics of accurate measurement, small size and integration. The RCD sensor can be set separately for AC and DC leakage and has a digital output function. Which can also be called leakage current sensor, residual current monitor (RCM), residual current device (RCD), differential current sensor, earth leakage detector and fault current sensor etc. The MD0630T01A is a compact solution designed to be mounted directly onto a PCB. Allows the protection of ev charging points. Besides, it widely used for photovoltaic systems, medical instruments, inverters, battery packs, UPS, smart home, industrial machines, IOT etc. In addition, our delivery time is also guaranteed.
Product Features
1. Small Size; Integration Design; Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mount

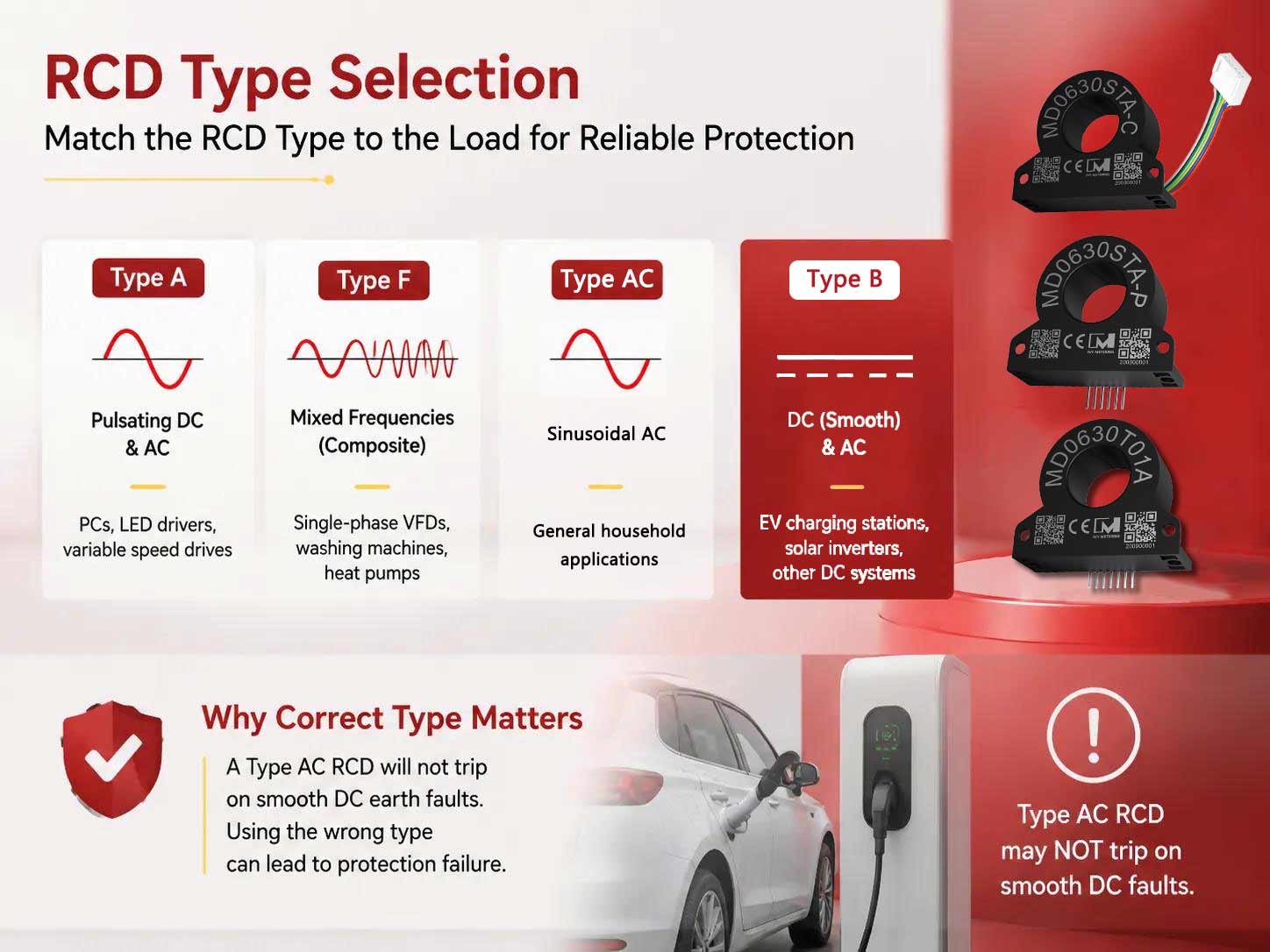

2. AC DC Sensitive Digital Output Function; Type AC/A/F/B/B+ Leakage Detection
3. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs
4.With UART Comm Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019
5. Certification: TUV(IEC62955/IEC62752/IEC61851-1); UL2231-1/UL2231-2; IS17017; CE-EMC
6. Electrical Safety at Low Cost (Compared to Type B RCCB)
7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions
Product Parameters
Wide voltage input: 12V±20%
Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)
Accuracy : at 25℃, DC±0,2mA, AC±0.3mA
Can read current value and set alarm current value
Three outputs: DC alarm, AC alarm, AC/DC alarm
Working environment temperature: -25℃～+80℃
Plastic case, small SIP package
Pin Definition
Pin | Definition | Description |
1 | Vcc | 12V±20% input voltage |
2 | GND | Input terminal grounded |
3 | RX | UART receive（UART output voltage 5V）(Modbus Protocol) |
4 | TX | UART transmit（UART output voltage 5V）(Modbus Protocol) |
5 | AD | AC、DC leakage alarming output( output voltage 5V）(Digital Signal) |
6 | AO | AC leakage alarming output( output voltage 5V）(Digital Signal) |
7 | DO | DC leakage alarming output（output voltage 5V）(Digital Signal) |
Typical Application
Appliance ground fault detection
Solar inverter residual current
Converter leakage current detection
UPS and other power ground fault detection
Electric vehicle charging station
Single or 3 Phases differential current detection
