Prouduct Details
IVY Metering is specialized in the research, development, and manufacturing of high power and high quality magnetic latching and motor latching relays for switching purposes.
The existing magnetic latching relay driving mechanism is mainly used for integrated smart meter terminal modules or split smart meter terminal modules. The integrated smart meter terminal module fails to take into account that the magnetic latching relay must work normally under a specific constant magnetic field, and cannot Prevent interference from external strong magnetic fields.
If the magnetic latching relay wants to have the ability to resist magnetic field interference, it needs to add an iron shield, which will take up more space and cost more. IVY Motor latching relays are also familiar and used by more and more meter manufacturers because of their gear structure and inherent anti-magnetic properties.

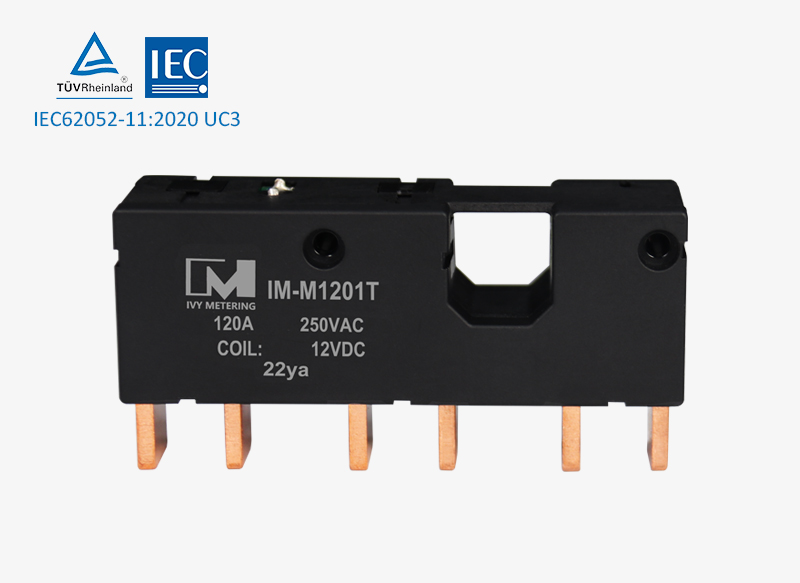

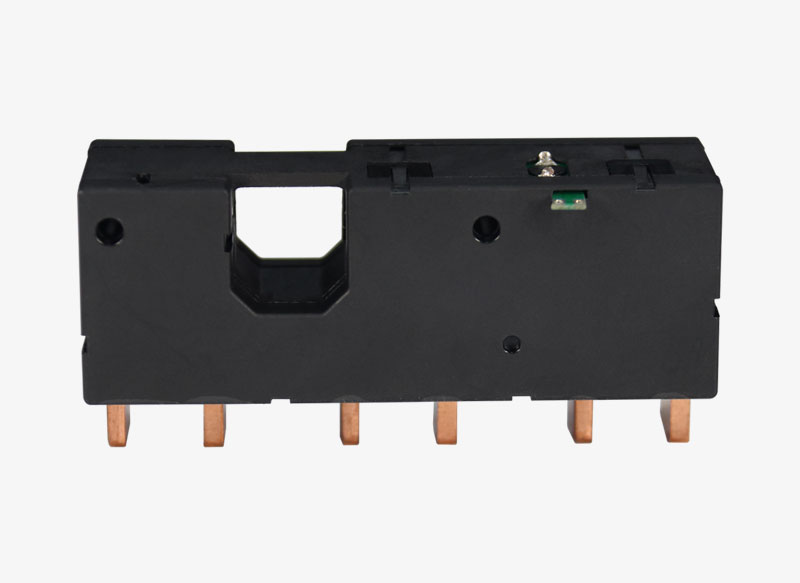

IVY Metering motor latching relays align with the requirements of the electric power industry's smart grid initiative. IM-M1201T 3 phase motor relay is designed to provide the highest electrical performance in a compact package. The compact relays utilize innovative technology for accurate switching with low contact resistance. The disconnect relays provide magnet tamper resistance to prevent switching by an external magnetic field as well as safe electrical operation. It has the following characteristics:
Driven by internal small motor instead of coil drive, saving power and stable performance.
Small size, light weight, compact structure, cheaper price, built-in 500mT anti-constant magnetic field.
Small contact resistance (less than or equal to 0.5 milliohms)
Strong pull-in between contacts and high reliability
Product Parameters
Basic parameters | Dimension（mm） | 79*28*25.5mm | ||
Weight | ≈103g | |||
Ambient | -45~+85℃ | |||
Contact parameters | Contact Material | AgSnO2 | ||
Contact Arrangement | 3A/3B | |||
Contact Resistance | ≤1.0mΩ | |||
Contact Load | 250VAC,120A | |||
Electrical Life | 32ΩMotor（Control voltage DC12~15V, rated resistive load） | ≧5000 cycles | ||
12ΩMotor（Control voltage DC12V, rated resistive load） | 10000 cycles | |||
Mechanical Life | Control Voltage（DC12V Contact no load or micro current load） | ≧50000 cycles | ||
Performance parameters | Rated Driving Voltage | 32ΩMotor | 12V（Advise pulse width 130-150ms） | |
32ΩMotor | 15V（Advise pulse width 90-110ms） | |||
12ΩMotor | 10V（Advise pulse width 80-100ms） | |||
12ΩMotor | 12V（Advise pulse width 70-80ms） | |||
Motor Resistance（two styles optional） | 32（1±15%）Ω | |||
12（1±15%）Ω | ||||
Vibration | 1.5mm(double amplitude),10~ 50Hz | |||
Shock | 1000m/s²,(100G) | |||
Surge Current | 6000A/10ms | |||
Insulation Resistance | ＞1000MΩ（500VDC） | |||
Dielectric Strength | Motor to Contact | ＞4000VAC,1 min | ||
Across Open Contact | ＞2000VAC,1 min | |||
Pole to Pole Contact | ＞4000VAC, 1min | |||
Closing time at rated drive voltage | 32ΩMotor（12V） | ≤110ms | ||
32ΩMotor（15V） | ≤80ms | |||
12ΩMotor（10V） | ≤70ms | |||
12ΩMotor（12V） | ≤60ms | |||
Breaking time at rated driving voltage | 32ΩMotor（12V） | ≤80ms | ||
32ΩMotor（15V） | ≤50ms | |||
12ΩMotor（10V） | ≤50ms | |||
12ΩMotor（12V） | ≤40ms | |||
TYPICAL APPLICATION：
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
