Product parameters
IVY Latching Relay
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. Compared with magnetic latching relay, motor latching relay with 500mT permanent magnetic immunity, prevent contacts from being interfered by magnetic fields. And, the size is much smaller.

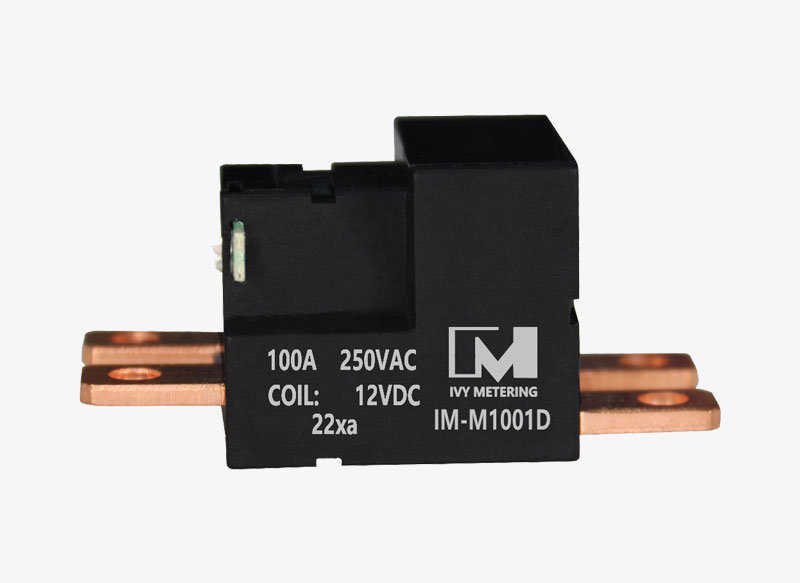

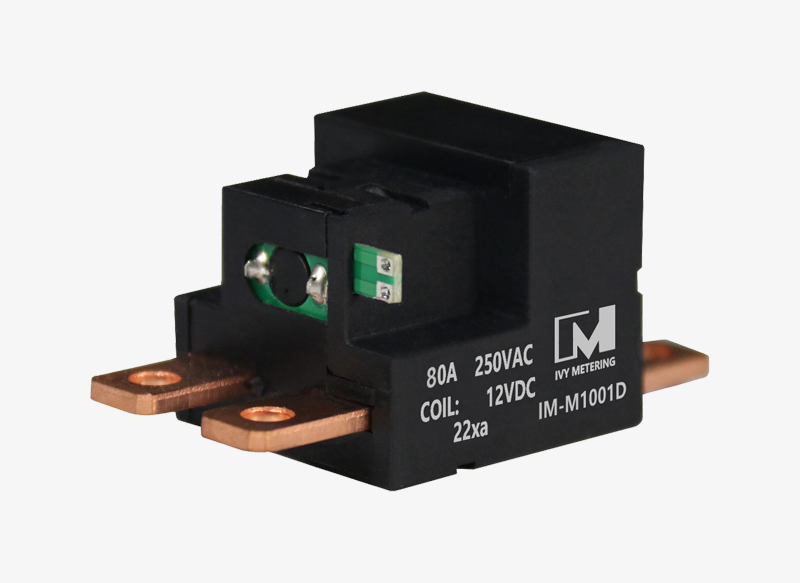

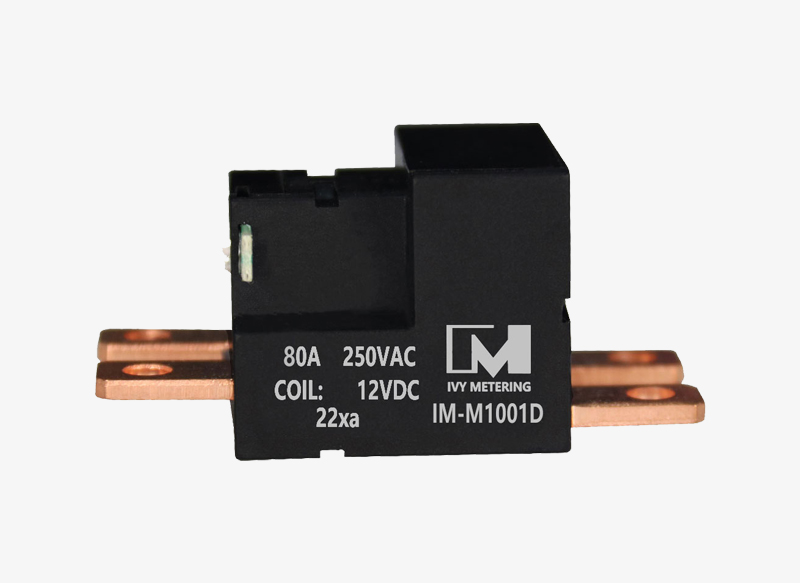

IM-M1001D is a new 2 pole motor latching relay, compared with 2 phase magnetic latching relay, It has the following characteristics:
Driven by internal small motor instead of coil drive, saving power and stable performance.
Small size, light weight, compact structure, cheaper price, built-in 500mT anti-constant magnetic field.
Product Features
Switching Capacity: 80A,250VAC
Contact Form: 2A/2B
Permanent Magnetic Immunity to 500mT
Compact Design, Mini Body, Cost-effective
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
RoHS compliant materials and process
IEC62055-31 TUV Certified with Appearance Patent
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, Solar PV system
