IVY is specialized in the research, development, and manufacturing of high powered, high quality, highly reliable high power relays, new energy relays and latching relays. We offer relays from 32A to 200A for both single, dual and three phase switching purposes. Our relays are designed to meet the industry's highest performance standard and it offers the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.

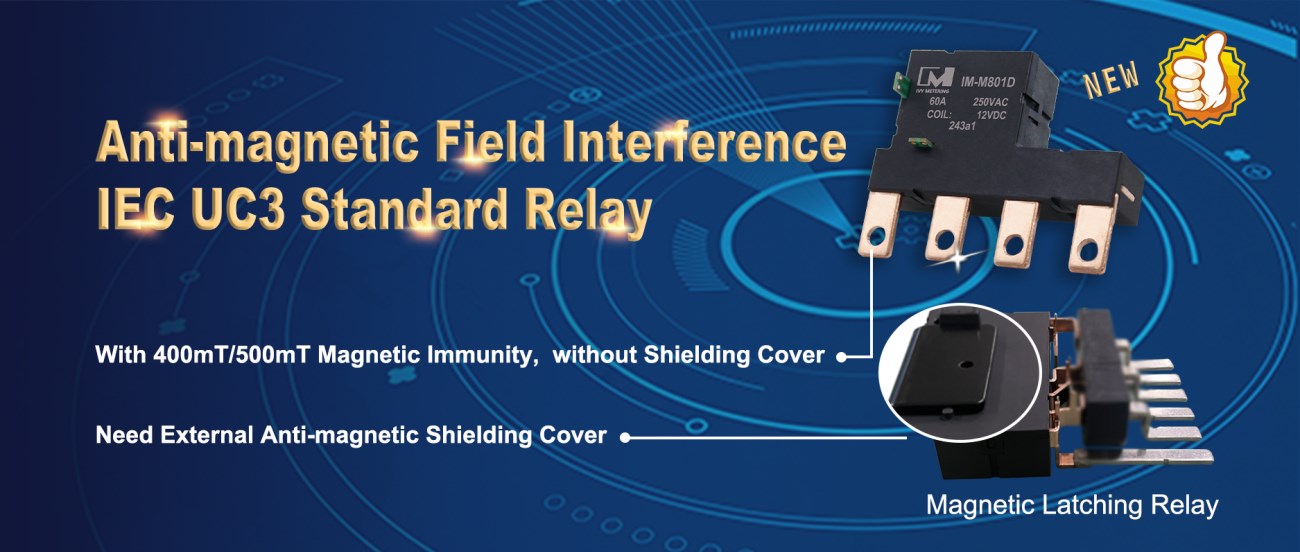

IVY Metering IM-M801D/IM-M1202D/IM-M1203D series 60A 100A 2 phase magnetic immunity relays are newly launched! Compared with magnetic latching relays, it is smaller in size, has lower contact resistance, and permanent magentic immune up to 400mT/500mT.
IM-M1203D Product Advantages
100A two sets of contacts switching capability
Small size, light weight, compact structure
Resistance to external static magnetic field up to 400mT/500mT
Strong anti-shock ability and low contact resistance
Built-in small motor driven, with auxiliary switch
In accordance with IEC 62055-31 IEC 62052-11:2020 UC3
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
Product Parameters
Basic Parameter | dimension | 63.7*34*18mm | |
weight | ≈56g | ||
ambient temperature | -40~+85℃ | ||
Contact Parameter | Contact material | AgSnO2 | |
Contact form | 2A/2B | ||
contact resistance | ≤0.6mΩ（DC6~24V，1A） | ||
Maximum switching current | 100A | ||
Maximum switching voltage | 250VAC | ||
Performance parameters | Rated voltage | 12VDC | |
Motor resistance（R±15%） | 32Ω | ||
Motor power consumption | 4.5W | ||
vibration | 1.5mm(double amplitude),10~55Hz | ||
Anti-shock resistance | 1000m/s² (100G) | ||
Insulation resistance | ＞1000MΩ（500VDC） | ||
dielectric strength | motor to contacts | 4000VAC,50/60Hz，1min | |
across open contacts | 2000VAC,50/60Hz，1min | ||
Short circuit current withstand capability | 6000A（50/60Hz）, ≈10ms | ||
pulse time | 50ms~80ms（Advise） | ||
pull-in time | ≤45ms | ||
release time | ≤45ms | ||
Electrical life | 10000cylcle（resistive load 100A 230VAC） | ||
Mechanical life | 100000cylcle | ||
TYPICAL APPLICATION：
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
