Product parameters
Prouduct Details
Latching Relay is a kind of automatic switching component with isolation function, which is widely used in Remote control, remote measuring, telecom, automatic control, integration of machinery and Electrification, electric and electronic equipments. It's one of the most important controlling Components.
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay.

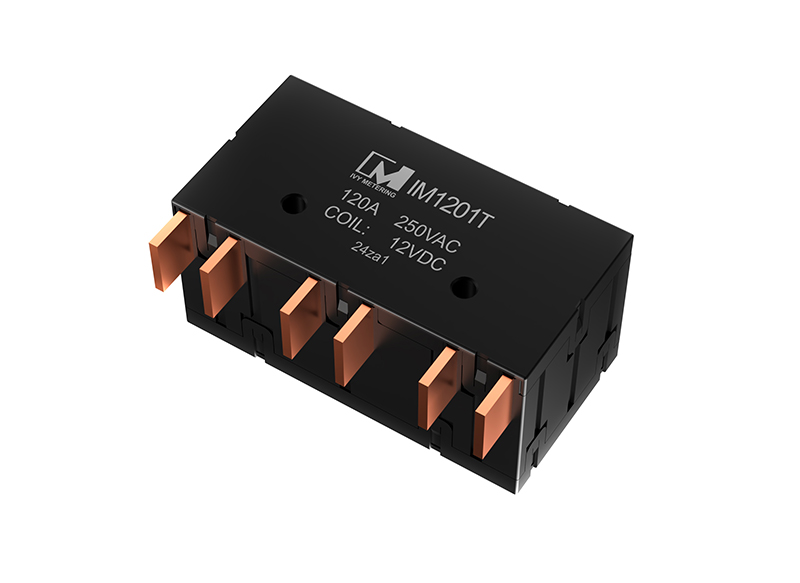

IM1201T 120A Three-phase Latching Relay
Three poles contact(normally open, normally closed) ; three way control.
Maximum switching current 120A, strong load capacity.
CT Assembled, Low Consumption, Pulse Driving, Environment-friendly.
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
Widely used in Energy Meter, Industrial Control, Home Appliance, Control Panel, Lighting Control Device, IOT Device etc.
Product Parameters
Rated Load 120A 250VAC
Contact Form 3A/3B
Rated Coil Consumption: 3.0/6.0W(30ms)
Dielectric Strength: 4kV
Compact Size:78.6*40.3*37.8mm
Contact Material: AgSnO2
Max. Switching Power: 30000VA
Contact Resistance; <2.0mΩ
Pick-up Time; 30ms
Release Time: 30ms
Electrical Endurance; 10000 Cycles
Mechanical Endurance; 100000 Cycles
Temp.Rise; ≦55k
Ambient Temperature: -40℃~70℃
Ambient Humidity; 5%~98%RH
