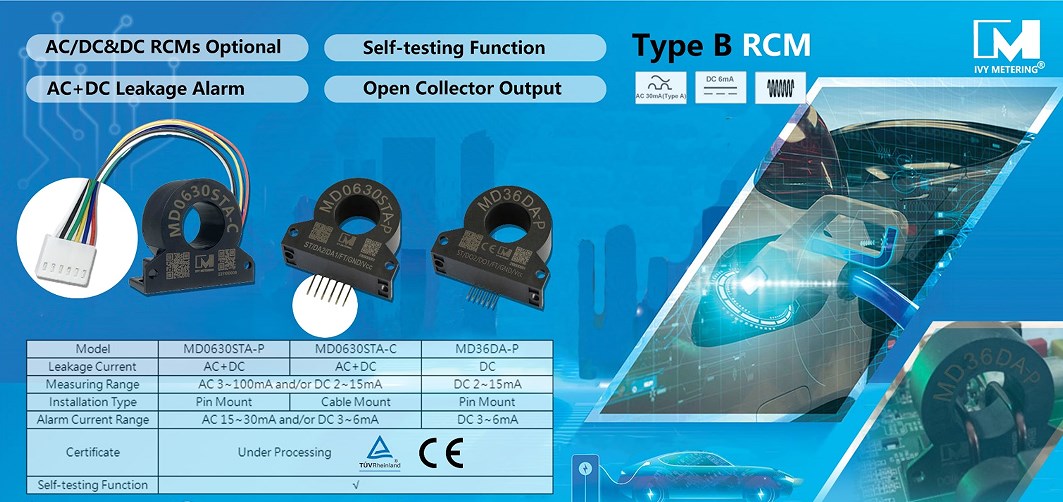

MD36DA-C IEC62955 RDC-MD Differential Sensor Residual Direct Current Monitoring Module for AC Charger

Product Details

MD36DA-C is a high sensitivity and cost-effective dc leakage current sensor also colled residual direct current monitoring module, residual direct current monitoring device(RDC-MD), residual direct current detecting device(RDC-DD), residual direct current protective device(RDC-PD) intended for the detection of DC residual currents at 6mA or greater in 50Hz/60Hz AC installations. This DC RCD module detect smooth DC and half-wave DC currents. Which, electrically coupled to a protection unit, in full compliance with the requirements of IEC 62955. As an option, the module can also integrate residual alternate current monitoring. The rcd module is suitable for use in AC charging stations permanently connected to the mains (mode 3 according to IEC 61851-1)

The dc rcm/rdc-dd is a compact solution designed to be cable mounted. When a DC leakage current of 3~6mA is detected, an alarm signal is output. It can judge whether the sensor is in a normal working state in real time through the self-test function. It is primarily intended for use in EV charging stations to output alarm signal under a DC residual fault current condition. In addition to the use of charging piles. Also suitable for solar inverters, UPS, smart home, industrial machines, medical device, power distribution cabinet etc. There is a DC component leakage scenario. Provide more reliable protection. Protecting personal and electrical equipment safety.

Product Advantages

DC 2~15mA micro current detection

DC 3~6mA Alarm (Needn’t Set)

Self-test Function, Open Collector Alarm Output

Integrated Design, Cable/Horizontal Type Installation

Various types of dc leakage current monitoring(typeAC/A/F/B)

Cost-effective Product

Product Parameters

Product Application

1.Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation

2.can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.

3.can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.

4.In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation
