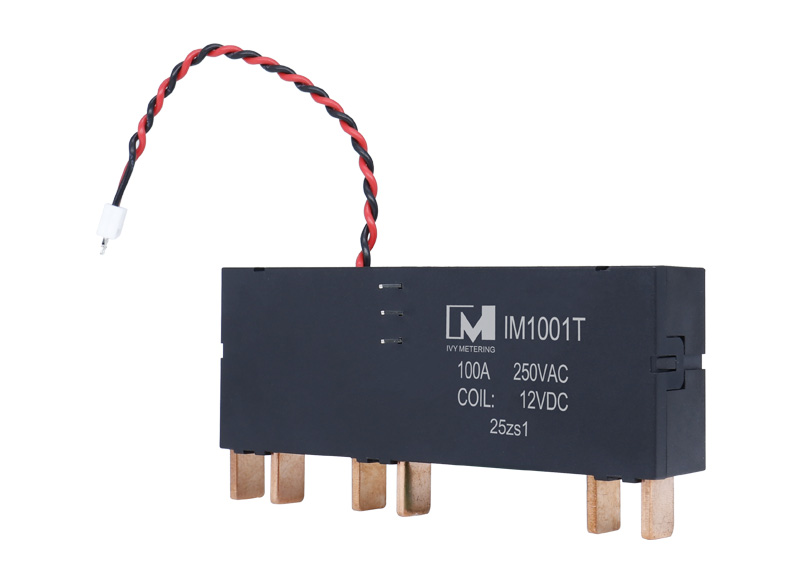

IM1001T is a 100A 3 phase latching relay built for the global metering market. This relay is able to switch 100 Amps while still maintaining a very low temperature rise. It is also available with auxiliary switch.
IM1001T is ideally designed for electric meters for the global metering market. Our metering customers have been pleased with the product's performance and reliability. Given our ability to understand our customer's needs, we've been able to design, build, and test customized solutions that allow them to receive our products and plug them right into their systems without additional assembly.
IM1001T is a custom 3 phase relay, it has stable performance and long service life. It's main characteristics as follows:
Three poles contact, three way control, contact form: 3A/3B
Maximum switching current 100A, with auxiliary switch
UC3 capability as per IEC 62052-31, RoHS compliant
Custom Assemblies with Shunts, CT, Flex-wire and Copper Extensions and Brass Terminals
Wide Application for Energy Meter, RCCB, Power Distribution Cabinet, Ligting System, Industrial Control.
Product Parameter
Rated Load: 100A 250VAC
Contact Form: 3A/3B
Rated Coil Consumption: 3.0/6.0W(30ms)
Dielectric Strength: 4kV
Compact Size:98.6*35.5*18.8mm
Contact Material: AgSnO2
Max. Switching Power: 25000VA
Contact Resistance; <1.0mΩ
Pick-up Time; 30ms
Release Time: 30ms
Electrical Endurance; 10000 Cycles
Mechanical Endurance; 100000 Cycles
Temp.Rise; ≦55k
Ambient Temperature: -40℃~70℃
Ambient Humidity; 5%~98%RH
